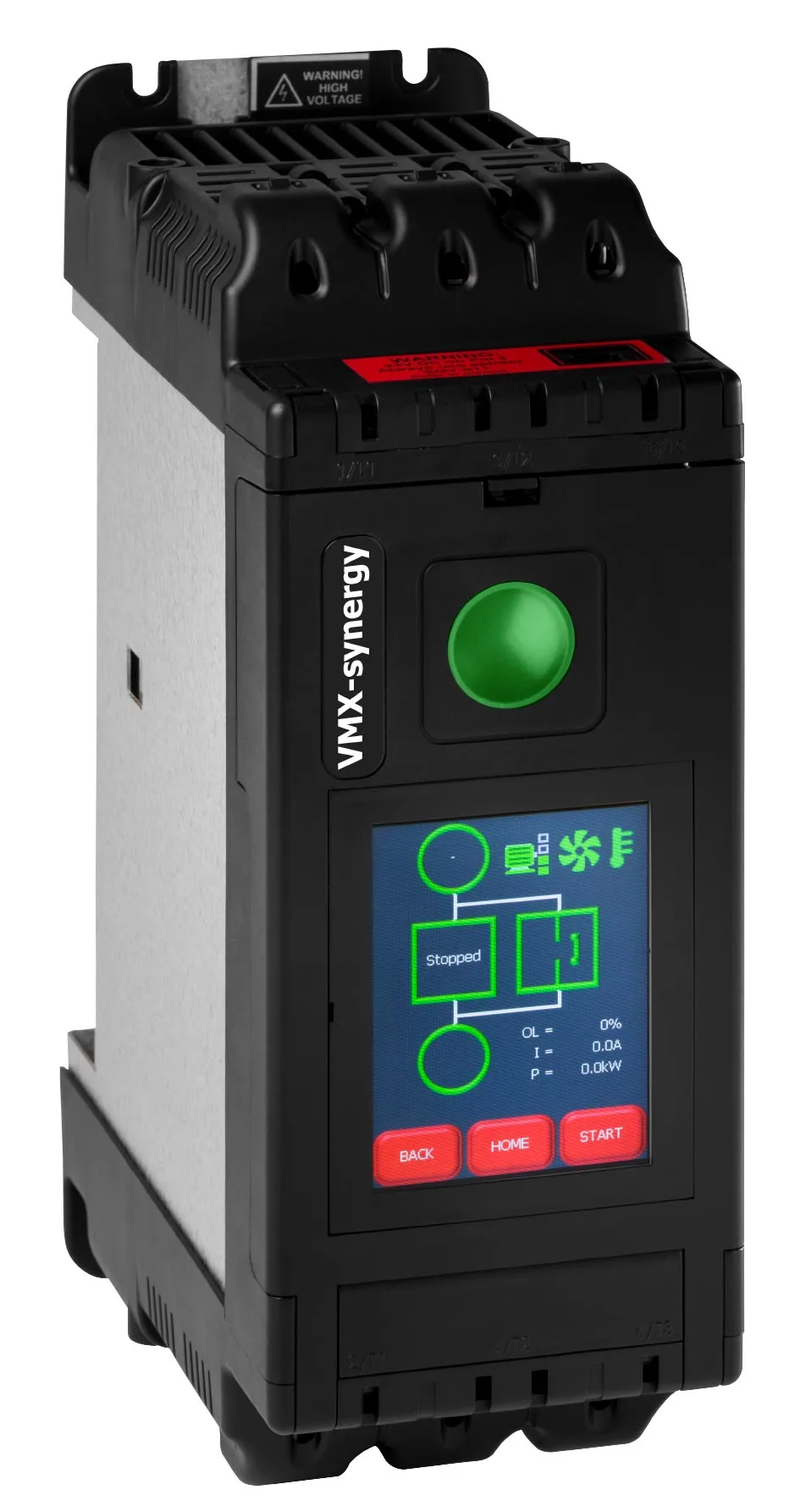

Redefining Soft Starters
With a unique combination of features, performance and size, Motortronics has redefined the benchmark for soft starter design.
The incorporation of Motortronics’ unique iERS technology allows VMX-synergy™ to deliver unrivalled soft start performance alongside energy saving capability on partially loaded motors.
With product size and cabinet capacity becoming an increasing focus we developed VMX-synergy™ to deliver the greatest power to size ratio of any other soft starter.
In addition VMX-synergy™ uses Motortronics’ globally renowned Automatic Setup feature which allows the user to programme the unit to any common application using a simple 4 step process. To keep pace with the modern technology, VMX-synergy™ removes the need for buttons and uses intuitive touch screen technology.
With built in full motor overload protection as well as full data logging, field serviceable fans, upgradeable firmware and extensive input/output programmability, VMX-synergy™ meets all of the key design criteria.

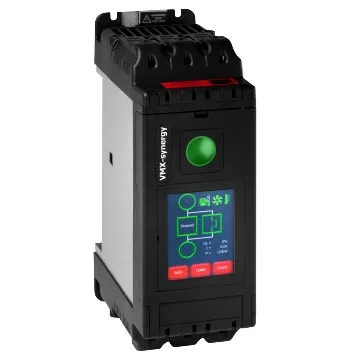

VMX-synergy™ Features
Variable Speed Drives are not needed in all applications, with fixed speed loads, a soft starter is a better option
Features & Benefits
Ease of Use
The display will show all messages in full and 14 different global languages. The use of graphic/schematic images will facilitate complete understanding. Detailed logging will aid setup and onboard USB will allow configurations to be upload/downloaded and emailed.
Touch Screen
Colour Touch screen on all versions.
Plug n Play
The soft starter will ‘tune’ itself to the load.
Auto Set Up
The automatic functionality has been expanded so that more features can be configured without referring to parameter lists.
Optimising
Energy optimising is combined with bypass to give energy saving in more applications.
Serviceability
Field replaceable fans.
2 Year Warranty
This is made economically viable by the comprehensive logging features, so fault conditions can be easily identified.
Specification
| Designation |
|---|
|
3-phase SCR Energy Saving Motor Controller |
| Current |
|---|
|
Size 1 up to 100A |
|
Size 2 up to 195A |
|
Size 3 up to 500A |
|
Size 4 up to 722A |
|
Size 5 up to 1080A |
| Bypass |
|---|
|
Internally Bypassed – Size 1 to 3
No Bypass – Size 4 to 5 |
| Motor Protection |
|---|
|
Full I2T Motor Overload with memory
Current limit set at 4.5x to meet IEC standards |
| Supply Voltages |
|---|
|
208, 230, 400,460 volts as standard
Allowing for varying supply frequency 45Hz-65Hz. |
| Standard Duty Rating |
|---|
|
Trip Class 10 |
|
3x 23 or 3.5x 17 |
|
5 starts/hour |
|
90% duty |
| Frame Sizes |
|---|
|
Up to 100Amps 95mm wide |
|
Up to 195Amps 143mm wide |
|
Up to 500Amps 205mm wide |
|
Up to 722Amps 490mm wide |
|
Up to 1080Amps 635mm wide |
| Enclosure Type |
|---|
|
Up to 195Amps IP20/NEMA 1 – with finger guard |
|
Above 195Amps IP00/NEMA 1 |
|
Optional Finger Guards up to 195A to ensure full IP20 enclosures |
| Enclosure Construction |
|---|
|
Main chassis: Metal |
|
Front Cover: Injection Moulded Plastic |
|
Terminal Covers: Injection Moulded Plastic |
| Terminal Position |
|---|
|
Terminal position/spacing to match common contactors
|
| Terminal Construction |
|---|
|
Up to 195Amps Cage Clamp |
|
Above 195Amps Plain Busbar |
| Control Voltages |
|---|
|
24V DC, 110/230V AC |
| Ambient Operating Conditions |
|---|
|
-20deg C to 50deg C |
| Motortronics iERS: Energy Saving Technology |
|---|
|
Yes |
| In Delta/6 wire connection |
|---|
|
Yes |
| Display Technology |
|---|
|
3.5″ Colour-TFT Touch Screen |
| Keypad |
|---|
|
Optional IP55 full colour touch keypad available for remote/door fitting. |
| Languages |
|---|
|
English |
|
Chinese (Mandarin simplified) |
|
Dutch |
|
French |
|
German |
|
Greek |
|
Italian |
|
Japanese |
|
Korean |
|
Polish |
|
Portuguese |
|
Russian |
|
Serbian |
|
Spanish |
|
Turkish |
|
Ukrainian |
|
Vietnamese |
|
Contact us for additional language requirements |
| Input/Outputs |
|---|
|
3 x NO programmable output relays |
|
1 x NC programmable output relays |
|
3 x programmable digital inputs |
|
1 x PTC thermistor input |
|
1 x 0-10V/4-20m Analogue input |
|
1 x 0-10V/4-20m Analogue output |
|
1 x USB |
| Communications |
|---|
|
Standard: Modbus RTU |
|
Optional: Anybus providing Ethernet IP, Modbus TCP & Profibus |
|
Contact us for additional communication requirements. |
| Data Logging |
|---|
|
Equipped with 4Gb memory, allowing the logging of every event. |
|
Date of first start (warranty date)
|
|
Total number of soft starts |
|
Number of soft stops |
|
Number of error events |
|
Display event logs |
|
Export data in CSV format |
| EU/IEC Legislation |
|---|
|
IEC 60947-4-2: 2012 |
|
Low Voltage Directive Battery Directive |
|
Energy Using Products/Energy Related |
|
Product Directives |
| Environmental |
|---|
|
Products comply to REACH, SVHC, RoHS and WEEE |
| Standards |
|---|
|
CE, CSA, ETL |
| Warranty |
|---|
|
2yrs |
| Reliability |
|---|
|
Fan efficiency detected, logged and reported
|
| Field Serviceability |
|---|
|
Firmware upgrade from USB port |
Product Options

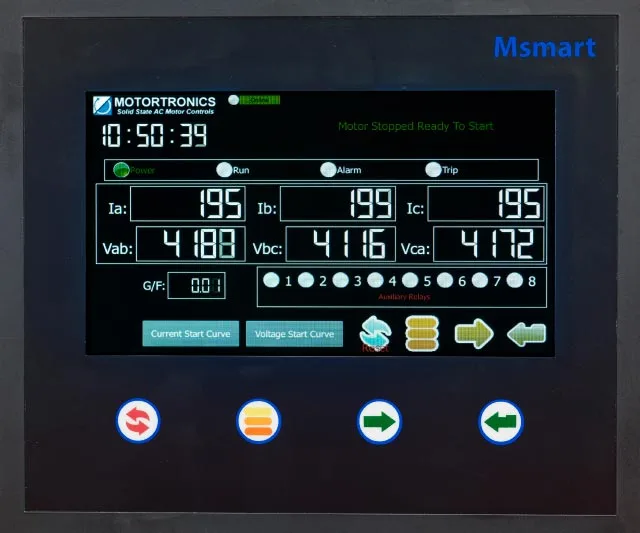

Msmart
Intelligent Touch Screen Interface
Combines multiple relays & starters into one uniöed interface Simplifies setup using a single touch screen Plaintext interaction in any of the 8 supported languag
Remote Keypad for VMX-synergy™
VMX-SGY-012 IP55 (NEMA Type 4X) Plug in remote mounting touch screen pad mimics the VMX-synergy™ display and functionality.

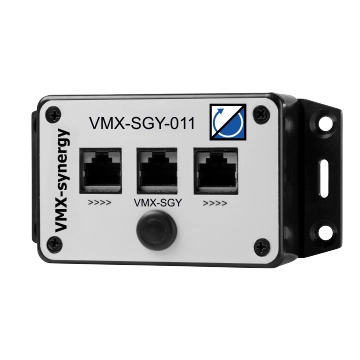

Splitter
VMX-SGY-011
