MS SERIES
Magnetic pickups for non-contact rotational speed measurement. Simple, highly reliable structure suitable for speed control and overspeed detection.
Product Details
OVERVIEW

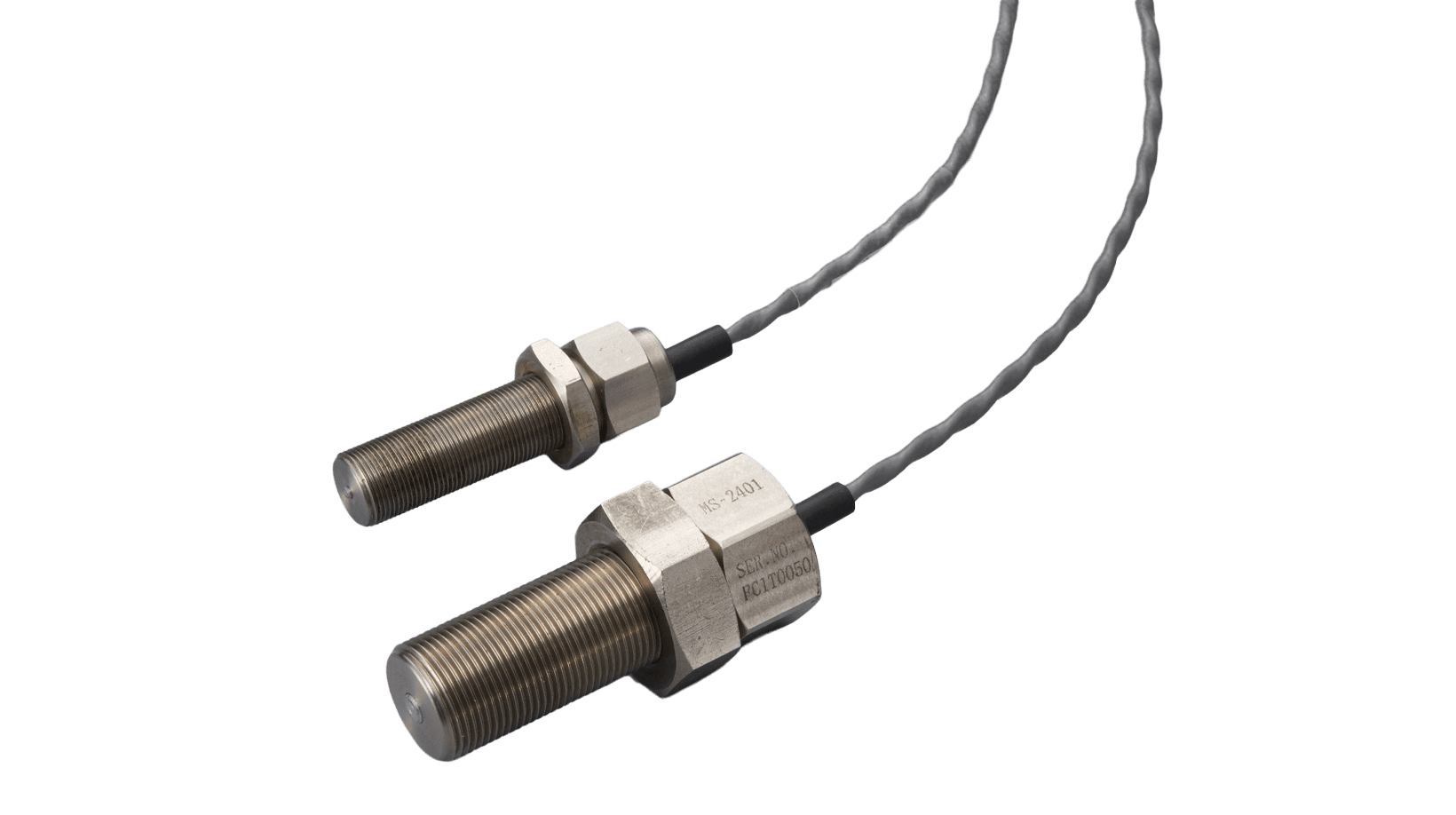

MS series magnetic pickups output a frequency signal proportional to the rotation speed of a rotating machine by detecting gear teeth on a rotating shaft without contact.
The structure consists of a magnet, pole piece and detector coil. When a magnetic material crosses the pole piece, the changing magnetic flux causes the coil to generate an electrical signal with a frequency proportional to the gear revolution.
The simple construction provides high reliability and is suitable for speed control and overspeed detection applications.
MS Series
Magnetic pickups for non-contact rotational speed measurement. Simple, highly reliable structure suitable for speed control and overspeed detection.
Excellent durability and environmental resistance
Robust construction withstands harsh industrial environments with an operating temperature range of −10 to +120°C.
High output voltage
Strong magnetic circuit design delivers high output voltage for reliable signal detection even at low rotational speeds.
Vibration proof
Withstands vibration levels up to 196 m/s² (20G), suitable for installation on rotating machinery.
Simple and reliable structure
Passive magnetic design with no electronics — no power supply required, ensuring long-term reliability.
SPECIFICATIONS
MS-1601 / MS-1602 (M16)
8 SPECSMS-2401 / MS-2402 (M24)
8 SPECSCOMMON SPECIFICATIONS
2 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
DOCUMENTS
MS-1601 Magnetic Pickup Specifications
datasheet
Coming soonMS-1602 Magnetic Pickup Specifications
datasheet
Coming soonMS-2401 Magnetic Pickup Specifications
datasheet
Coming soonMS-2402 Magnetic Pickup Specifications
datasheet
Coming soonREQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the MS Series.
