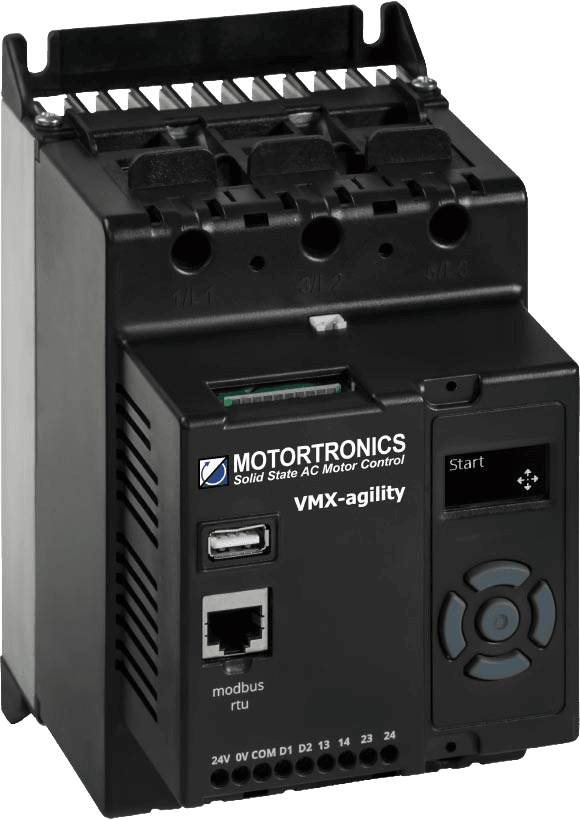

VMX-AGILITY
Compact soft starter with 3S advanced starting technology, i23 application profiles, and OLED display for ratings up to 477 Amps.
Product Details
OVERVIEW
VMX-agility™ has been developed to exceed the exacting demands of industrial automation motor control clients. VMX-agility™ delivers stable start and stop ramps for smooth, efficient performance. Three standard frame sizes cover all typical applications from 7.5kW to 250kW at 500VAC, 15 - 350HP at 600VAC.
VMX-Agility
Compact soft starter with 3S advanced starting technology, i23 application profiles, and OLED display for ratings up to 477 Amps.
i23 smart application pre-program suite
A suite of pre-programmed application ‘complete setup’ profiles facilitate a quick and comprehensive commission process to give freedom and independence to engineers. Typical VMX-agility™ setup takes less than 1 minute whereas a comparable competitive product commission could be 60 to 120 minutes for only a partial setup.
3S Technology
Automatic ramp control profiles ensure smooth start and stop performance, delivering stable acceleration and deceleration in all operating conditions.
OLED Display
Full text messages enabling fast programming and rapid fault finding with no codes and real-time value monitoring. Local display of recent logged events.
USB
For field firmware upgrades and downloading of the event logging data.
Modbus RTU
Communications as standard. No need for optional communication cards.
Motor Overload Protection
Protecting the motor and soft starter in the event of an overload situation at full I²t motor overload with intelligent thermal memory retention feature.
Life Event Logging
VMX-agility™ life event logging is a unique feature that records the last 1600 events to enable fast accurate fault analysis and their resolution.
Loss Reduction
An integral bypass is initiated at the top of ramp and reduces losses in the soft starter.
Start Delay Feature
Intentional start delay allowing pump actuators to engage before start.
Control Circuit
A standard 24 VDC control voltage supply with an optional power module which adapts the digital input voltages to accept a 110/230 VAC signal.
Lowers Panel Production Costs
Three unit frame sizes across the voltage range of 200-600VAC with vertical or horizontal mounting to facilitate efficient panel layout.
Soft Stopping
Current is limited during soft stopping and gives greater control against water hammer.
Fire Mode
External input signal overriding normal controls allowing the motor to continue running in emergency situations.
Frequent Number of Starts
Optional cooling fan for frequent duty applications with up to 40 starts per hour - size 1, and from 10 to 40 starts per hour (rating dependent) - size 2.
Optional Remote Display Keypad
Plug in remote mounting unit keypad mimics the VMX-agility™ display and keypad function.
Optional Power Supply Unit Module
Unique to VMX-agility™ this module enables control voltage options in one standard product unit.
SPECIFICATIONS
GENERAL
3 SPECSDUTY RATING
6 SPECSMOTOR PROTECTION
1 SPECENCLOSURE & AMBIENT
4 SPECSCONTROL SUPPLY
2 SPECSINPUT/OUTPUTS
2 SPECSDISPLAY & INTERFACE
2 SPECSCOMMUNICATIONS & DATA
2 SPECSSTANDARDS & COMPLIANCE
2 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
DOCUMENTS
VMX-agility Brochure
brochure
Coming soonVMX-agility Full User Manual
manual
Coming soonVMX-agility Quick Start Guide
manual
Coming soonVMX-agility Remote Keypad User Guide
manual
Coming soonVMX-agility Fan Installation Guide
manual
Coming soonVMX-agility Power Supply Installation Manual
manual
Coming soonREQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the VMX-Agility.
