LINEAR PNEUMATIC ACTUATOR
Linear pneumatic actuator converting compressed air into linear motion for on/off, modulating, and HIPPS valve service; up to 3,000 KN output force, IP67, available in carbon or stainless steel.
Product Details
OVERVIEW
The Linear Pneumatic Actuator converts the energy in compressed air into linear motion through controlled air supply and exhaust, enabling cylinder telescopic movement. Comprising a cylinder, piston, seal, and guide, compressed air directed through a control valve creates pressure differences that cause the piston to move reciprocally.
Available in spring return and double acting configurations for on/off, modulating, or HIPPS valve service. Body materials include carbon steel and stainless steel. Rated to IP67. Output force up to 3,000 KN. Operating temperature −29°C to +100°C; −60°C available upon request.

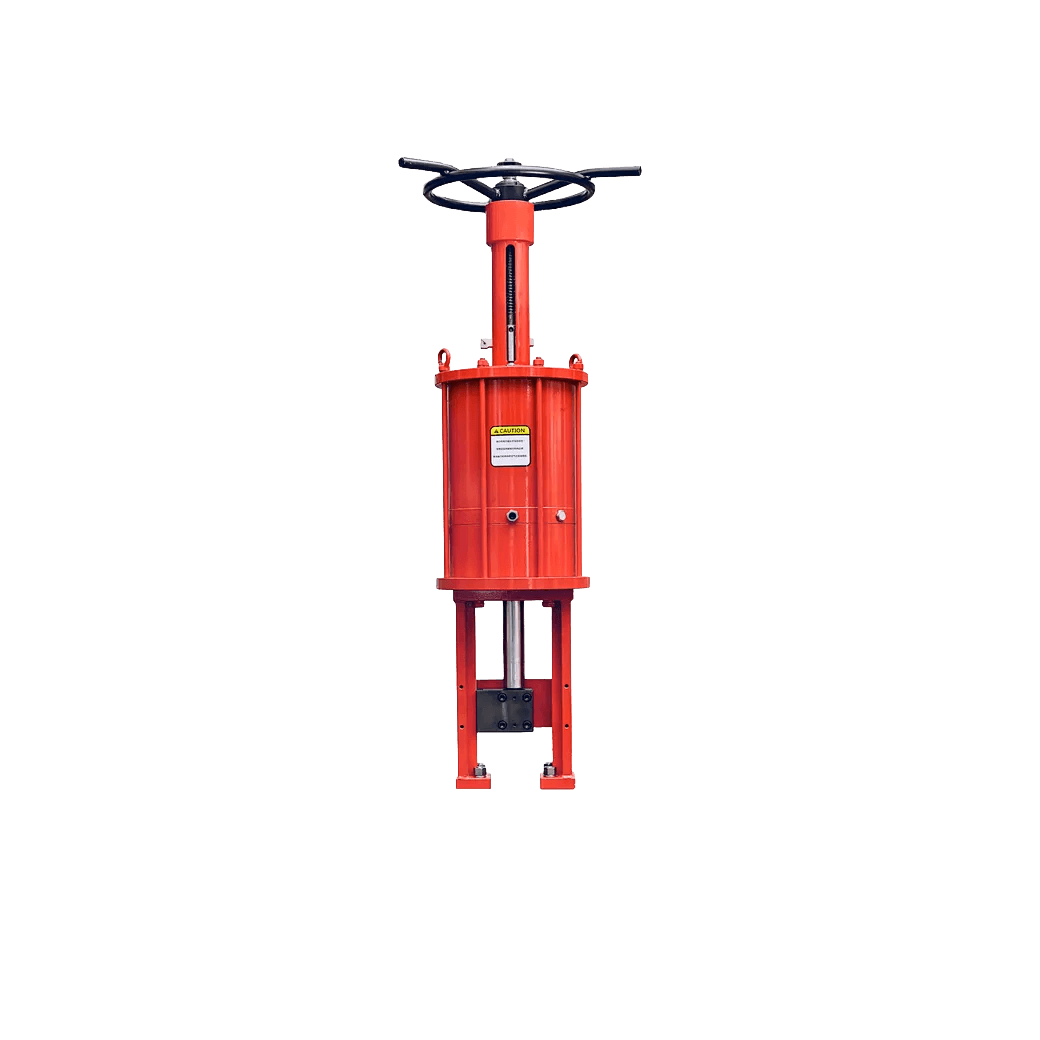

Linear Pneumatic Actuator
Linear pneumatic actuator converting compressed air into linear motion for on/off, modulating, and HIPPS valve service; up to 3,000 KN output force, IP67, available in carbon or stainless steel.
Spring Return and Double Acting Options
Available in spring return or double acting configurations to suit on/off, modulating, or HIPPS valve service.
High Output Force
High pressure ratings deliver output forces up to 3,000 KN for demanding linear valve applications.
IP67 Protection
IP67-rated enclosure provides waterproof protection for outdoor and harsh-environment installations.
Carbon or Stainless Steel Construction
Available in carbon steel or stainless steel to suit corrosion and material compatibility requirements.
SPECIFICATIONS
GENERAL
2 SPECSPERFORMANCE
3 SPECSMATERIALS
1 SPECUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Linear Pneumatic Actuator.
