PRESSURE BALANCE LUBRICATING TYPE PLUG VALVE

1/2"–36", Class 150–2500 pressure balance lubricating plug valve with quarter-turn operation, rational structure, reliable sealing, and minimal sealing surface wear.

Size Range1/2" – 36"

Pressure Class150 LB – 2500 LB

End ConnectionsRF / BW / RTJ / SW / FNPT

OperationLever / Gear motor / Pneumatic

CertificationsCE/PED, ISO, ATEX, SIL, NACE MR0175

REQUEST A QUOTE MANUFACTURER SITE

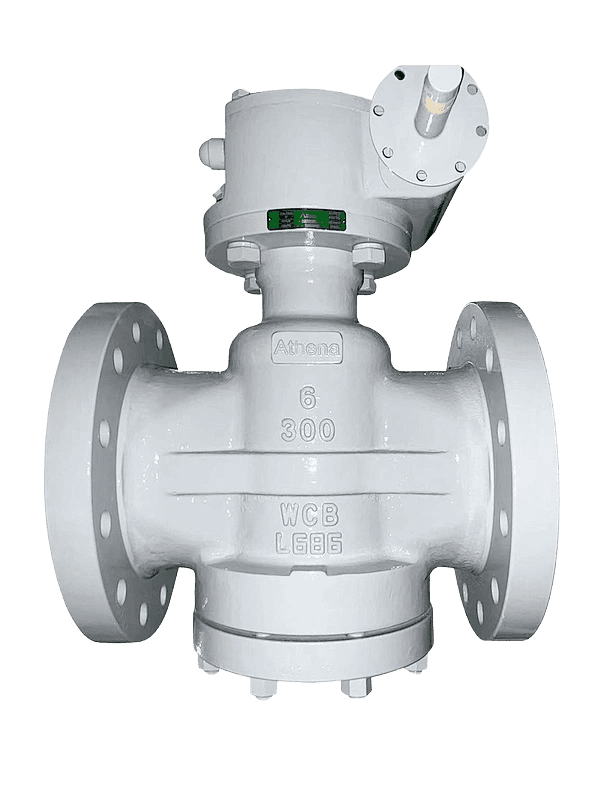

Pressure Balance Lubricating Type Plug Valve

Product Details

OVERVIEW

The Pressure Balance Lubricating Type Plug Valve features a cylindrical or conical plug that rotates within the body to manage fluid flow. Hollow passageways are positioned horizontally for unrestricted flow when open. The quarter-turn operation makes the valve ideal for frequent on/off cycling, while the pressure balance design provides reliable sealing with minimal wear on sealing surfaces during operation cycles.

Available from 1/2" to 36" in Class 150–2500 with RF, BW, RTJ, SW, and FNPT end connections in full bore and reduced bore variants. Body materials include carbon steel and stainless steel. Operable by lever, gear motor, or pneumatic actuator. Certified to CE/PED, ISO, ATEX, SIL, and NACE MR0175.

Pressure Balance Lubricating Type Plug Valve

1/2"–36", Class 150–2500 pressure balance lubricating plug valve with quarter-turn operation, rational structure, reliable sealing, and minimal sealing surface wear.

Pressure Balance Design

Rational structure and reliable sealing with excellent performance and minimal sealing surface wear during operation cycles.

Quarter-Turn Operation

Quarter-turn functionality provides fast, simple actuation ideal for frequent on/off cycling.

Lubricated Sealing

Lubricated plug design ensures reliable, long-life sealing performance across the full pressure and temperature range.

Full and Reduced Bore

Available in full bore and reduced bore configurations with flanged or butt-welded end connections.

SPECIFICATIONS

GENERAL

3 SPECS

01Size Range

1/2" – 36"

02Pressure Class

150 LB – 2500 LB

03Bore

Full bore / Reduced bore

MATERIALS

1 SPEC

01Body Material

Carbon steel, Stainless steel

END CONNECTIONS & ACTUATION

2 SPECS

01End Connections

RF / BW / RTJ / SW / FNPT

02Operation

Lever / Gear motor / Pneumatic actuators

STANDARDS & CERTIFICATIONS

2 SPECS

01Material Standard

NACE MR0175

02Certifications

CE/PED, ISO, ATEX, SIL

Use Cases

APPLICATIONS

Engineered for demanding environments across multiple industries and operating conditions.

01Oil and gas pipelines

02Refineries

03Petrochemical plants

04Power generation

05Gas and coal-fired turbines

06District heating

07Gas measurement systems

08Offshore platforms

09HIPPS systems

10Cryogenic service

11Emergency shutdown valves

12Pulp and paper

13Mining

14Boiler steam and drain applications

REQUEST A QUOTE

Contact Athena Control for pricing, availability, and technical support for the Pressure Balance Lubricating Type Plug Valve.
