BELLOWS SEALED GLOBE VALVE
1/2"–2", Class 150–1500 bellows sealed globe valve with stainless steel bellows and secondary stuffing box for zero external leakage.
Product Details
OVERVIEW
The Bellows Sealed Globe Valve features a stainless steel bellows welded around the valve stem that provides a hermetic barrier against external leakage. A secondary stuffing box around the stem gives an additional layer of protection, making the valve well-suited for piping systems handling potentially harmful or environmentally sensitive chemicals where stem fugitive emissions must be eliminated.
Available from 1/2" to 2" in Class 150–1500, these valves provide reliable flow control at high pressure and temperature. End connection options include raised face, ring-type joint, butt-weld, socket weld, and female NPT. Bolted bonnet, welded bonnet, and pressure seal constructions are offered. Supplied with material test certificates and hydraulic test certificates; third-party inspection is available. Certified to CE/PED, ISO, ATEX, SIL, and NACE MR0175.

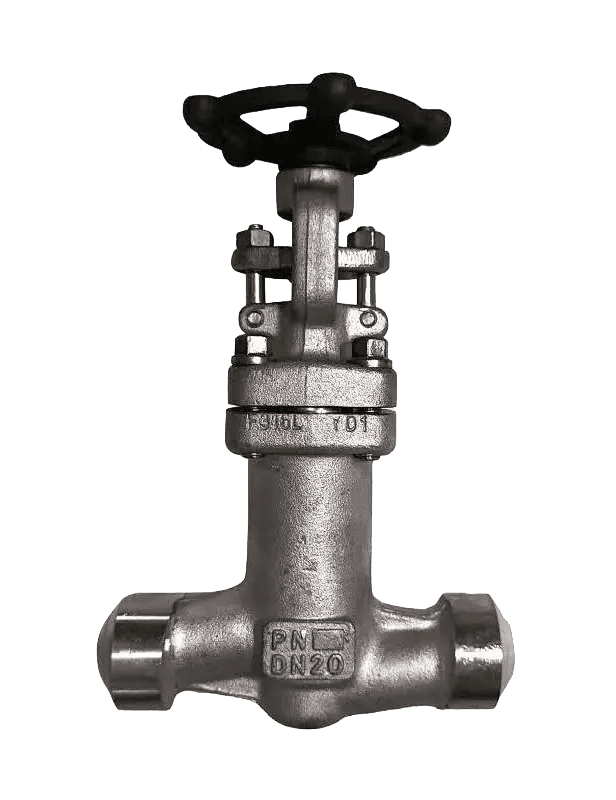

Bellows Sealed Globe Valve
1/2"–2", Class 150–1500 bellows sealed globe valve with stainless steel bellows and secondary stuffing box for zero external leakage.
Stainless Steel Bellows
Welded stainless steel bellows provides a hermetic stem seal, preventing external leakage of hazardous or environmentally sensitive media.
Secondary Stuffing Box
Additional stuffing box around the valve stem acts as a secondary seal, providing redundant protection against stem leakage.
Multiple Bonnet Options
Available with bolted, welded, or pressure seal bonnet to match pressure class and service conditions.
Versatile End Connections
Offered in RF, RTJ, BW, SW, and FNPT configurations for flexible piping integration.
Full Documentation
Supplied with material test certificates, hydraulic test certificates, and optional third-party inspection.
SPECIFICATIONS
GENERAL
4 SPECSMATERIALS
2 SPECSEND CONNECTIONS & ACTUATION
2 SPECSSTANDARDS & CERTIFICATIONS
2 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Bellows Sealed Globe Valve.
