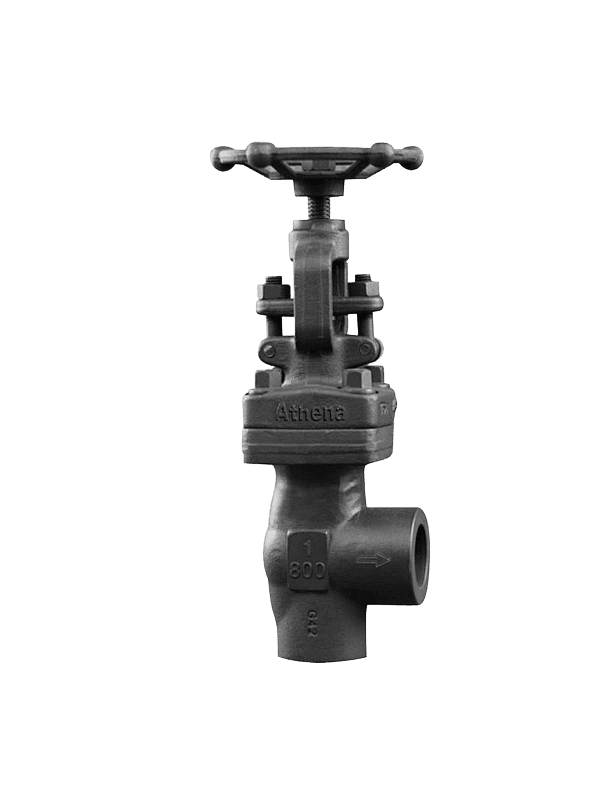

ANGLE GLOBE VALVE
1/2"–2", Class 150–2500 angle globe valve with 90° or 45° body geometry and streamlined curved bore for optimal flow.
Product Details
OVERVIEW
The Angle Globe Valve is a modification of the standard globe valve where the inlet and outlet ports are oriented at a 90° or 45° angle rather than in-line. The streamlined curved bore creates an optimal flow path with a lower Cv value compared to straight-pattern globes, making it well suited for periodic pulsating flow and applications prone to slugging effects.
Available from 1/2" to 2" in Class 150–2500, optional features include packing flushing connections and heating steam jackets to prevent medium accumulation in the body. Anti-static design and API 6FA Fire Safe certification are standard. Multiple bonnet constructions and end connections are offered. Certified to CE/PED, ISO, ATEX, SIL, and NACE MR0175.
Angle Globe Valve
1/2"–2", Class 150–2500 angle globe valve with 90° or 45° body geometry and streamlined curved bore for optimal flow.
90° / 45° Angle Body
Inlet and outlet ports at a right angle eliminate one pipe elbow and reduce overall piping layout complexity.
Streamlined Curved Bore
Optimized internal flow path reduces pressure drop and turbulence, delivering a lower Cv value than straight-pattern designs.
Pulsating Flow Capability
Designed to handle periodic pulsating flow and slugging effects without seat damage or instability.
Optional Steam Jacket
Heating steam jacket option prevents medium accumulation and solidification in the valve body for high-viscosity or solidifying media.
Anti-Static and Fire Safe
Anti-static design and API 6FA Fire Safe certification as standard.
SPECIFICATIONS
GENERAL
4 SPECSMATERIALS
1 SPECEND CONNECTIONS & ACTUATION
2 SPECSSTANDARDS & CERTIFICATIONS
3 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Angle Globe Valve.
