THROUGH CONDUIT GATE VALVE
2"–60", Class 150–2500 full-bore through conduit gate valve for high-pressure, high-temperature isolation with minimal pressure drop.
Product Details
OVERVIEW
The Through Conduit Gate Valve features a full-port bi-directional gate that maintains a continuous, unobstructed flow path when open, eliminating the cavities that trap media in conventional gate valves. This design prevents product contamination, simplifies pigging operations, and is particularly suited to applications requiring frequent flow path cleaning.
Available from 2" to 60" in Class 150–2500 with flanged and butt-weld end connections, these valves handle oil, gas, and liquid services at temperatures up to 200°C. They are suitable for both isolation and throttling duties and conform to API 6D and API 600 standards. Certified to CE/PED, ISO, ATEX, SIL, and NACE MR0175.

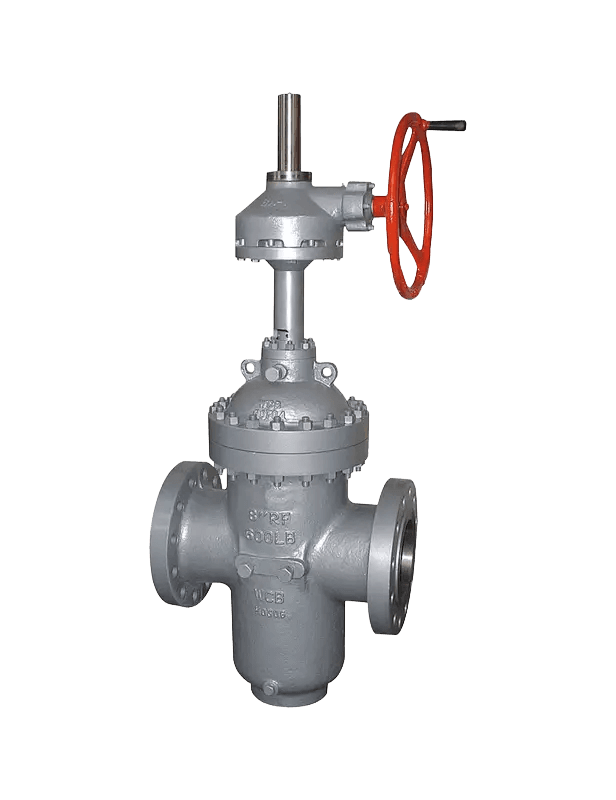

Through Conduit Gate Valve
2"–60", Class 150–2500 full-bore through conduit gate valve for high-pressure, high-temperature isolation with minimal pressure drop.
Full Port Bi-Directional Flow
Continuous bore through the gate provides unrestricted flow in both directions, eliminating media trapping cavities.
Piggable Design
Unobstructed conduit allows pipeline pigs to pass through freely for inspection and cleaning operations.
Minimal Pressure Drop
Through-conduit geometry minimizes turbulence and pressure loss compared to conventional gate designs.
High-Pressure and High-Temperature
Rated to Class 2500 and up to 200°C, covering the most demanding pipeline isolation requirements.
API 6D / API 600 Compliant
Designed and tested to API 6D and API 600 standards for pipeline and process applications.
SPECIFICATIONS
GENERAL
4 SPECSMATERIALS
1 SPECEND CONNECTIONS & ACTUATION
2 SPECSSTANDARDS & CERTIFICATIONS
2 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Through Conduit Gate Valve.
