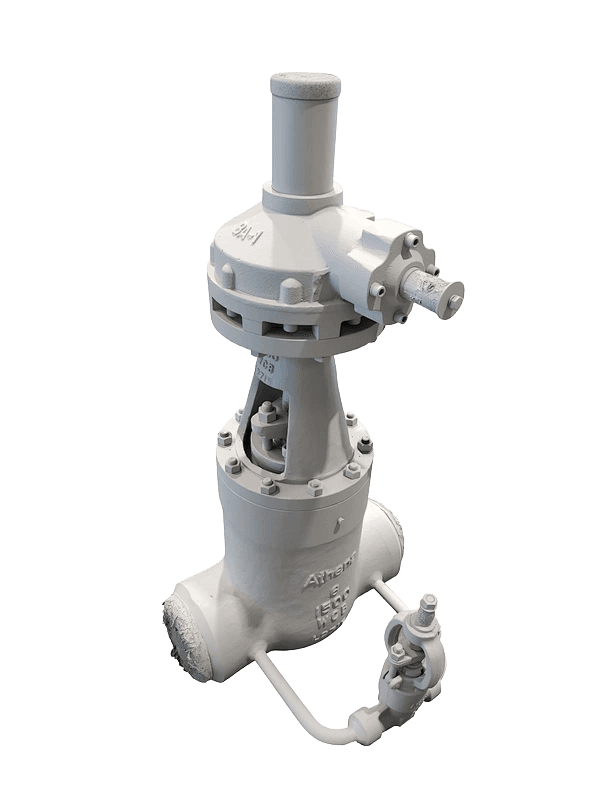

PRESSURE SEAL TYPE GATE VALVE
2"–30", Class 900–2500 cast steel pressure seal gate valve for high-pressure, high-temperature hydrocarbon and steam service.
Product Details
OVERVIEW
The Pressure Seal Type Gate Valve employs a self-energizing body-bonnet joint that strengthens as internal pressure increases, making it inherently suited for high-pressure and high-temperature applications. The higher the line pressure, the tighter the seal — eliminating the risk of bonnet joint leakage common in conventional bolted designs under elevated conditions.
Available from 2" to 30" in Class 900–2500, these valves handle steam, condensate, boiler feedwater, and hydrocarbon services across thermal and nuclear power plants, petrochemical facilities, and oil and gas installations. Body materials include carbon steel, stainless steel, alloy steel, specialty alloys, and Al-bronze. Certified to CE/PED, ISO, ATEX, SIL, Fire Safe, and NACE MR0175.
Pressure Seal Type Gate Valve
2"–30", Class 900–2500 cast steel pressure seal gate valve for high-pressure, high-temperature hydrocarbon and steam service.
Self-Energizing Pressure Seal
Body-bonnet joint seal improves with increasing internal pressure, providing leak-free performance under the most demanding conditions.
High-Pressure / High-Temperature Rating
Rated to Class 2500, suitable for the most severe steam, condensate, boiler feedwater, and hydrocarbon services.
Proven Power Plant Performance
Extensively deployed in thermal and nuclear power generation worldwide.
Wide Material Selection
Available in carbon steel, stainless steel, alloy steel, Monel, Inconel, Hastelloy, and Al-bronze to match process requirements.
SPECIFICATIONS
GENERAL
3 SPECSMATERIALS
1 SPECEND CONNECTIONS & ACTUATION
2 SPECSSTANDARDS & CERTIFICATIONS
2 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Pressure Seal Type Gate Valve.
