FORGED STEEL GATE VALVE

1/2"–2", Class 150–2500 forged steel OS&Y gate valve per API 602 with tight shut-off and multiple bonnet options.

Size Range1/2" – 2"

Pressure Class150 LB – 2500 LB

End ConnectionsRF / RTJ / SW / FNPT / BW

Design StandardAPI 602

CertificationsCE/PED, ISO, ATEX, SIL, Fire Safe, NACE MR0175

REQUEST A QUOTE MANUFACTURER SITE

Product Details

OVERVIEW

The Forged Steel Gate Valve is an outside screw and yoke (OS&Y) gate valve manufactured to API 602, designed for small-bore pipelines requiring tight shut-off with minimal pressure drop. When fully open, the gate retracts entirely from the flow path, allowing media to pass with minimal turbulence. The valve can be installed horizontally or vertically and provides limited throttle control for steam, gas, or liquid services.

Available from 1/2" to 2" in Class 150–2500, these valves are offered with bolted bonnet, welded bonnet, or pressure seal bonnet constructions. End connection options include raised face, ring-type joint, socket weld, female NPT, and butt-weld. Supplied with material test certificates and hydraulic test certificates; third-party inspection available. Certified to CE/PED, ISO, ATEX, SIL, Fire Safe, and NACE MR0175.

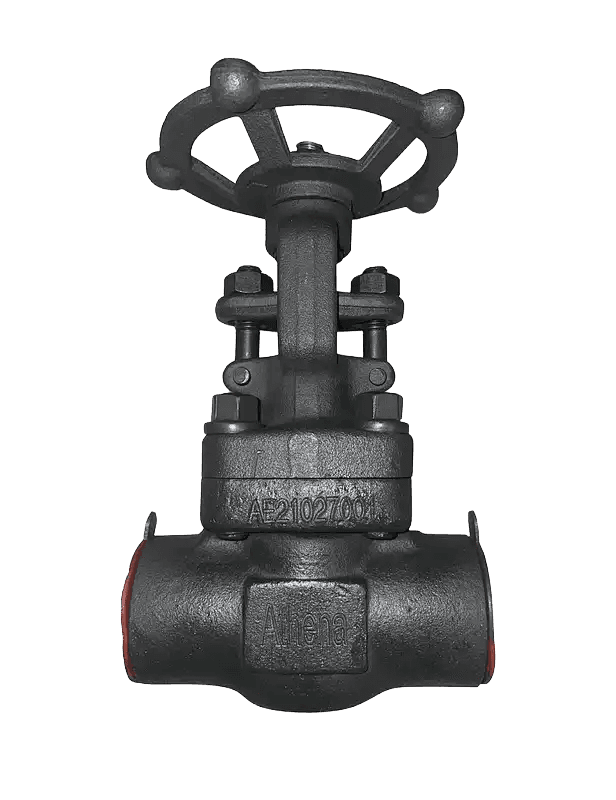

Forged Steel Gate Valve

1/2"–2", Class 150–2500 forged steel OS&Y gate valve per API 602 with tight shut-off and multiple bonnet options.

API 602 Design

Manufactured to API 602 for forged steel gate, globe, and check valves in small-bore piping.

Tight Shut-Off

Full retraction of the gate from the flow path delivers minimal pressure drop and turbulence when open.

Multiple Bonnet Options

Available with bolted, welded, or pressure seal bonnet to match pressure class and service requirements.

Versatile End Connections

Offered in RF, RTJ, socket weld, female NPT, and butt-weld configurations for flexible piping integration.

Full Documentation

Supplied with material test certificates, hydraulic test certificates, and optional third-party inspection.

SPECIFICATIONS

GENERAL

5 SPECS

01Size Range

1/2" – 2"

02Pressure Class

150 LB – 2500 LB

03Bore

Full Bore and Reduced Bore

04Bonnet Types

Bolted / Welded / Pressure Seal

05Design Standard

API 602

MATERIALS

1 SPEC

01Body Material

Carbon steel, Stainless steel, Alloy steel, Monel, Inconel, Hastelloy

END CONNECTIONS & ACTUATION

2 SPECS

01End Connections

RF / RTJ / SW / FNPT / BW

02Operation

Hand wheel

STANDARDS & CERTIFICATIONS

2 SPECS

01Material Standard

NACE MR0175

02Certifications

CE/PED, ISO, ATEX, SIL, Fire Safe

Use Cases

APPLICATIONS

Engineered for demanding environments across multiple industries and operating conditions.

01Oil and gas pipelines

02Refineries

03Petrochemical plants

04Power generation

05Offshore platforms

06Cryogenic service

07Emergency shutdown valves

08Pulp and paper

09Mining

10Boiler steam applications
