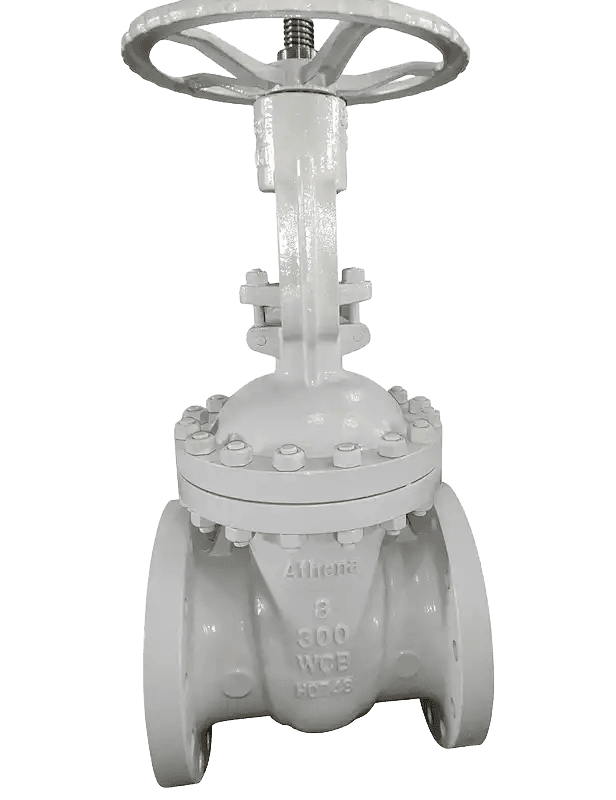

CAST STEEL GATE VALVE
2"–48", Class 150–900 cast steel OS&Y gate valve with low fluid resistance and bidirectional flow capability.
Product Details
OVERVIEW
The Cast Steel Gate Valve is a handwheel-operated manual OS&Y gate valve with a cast steel body, bolted bonnet, and non-rising stem design. It delivers low fluid resistance and places no restriction on flow direction, making it suitable for steam, saturated steam, air, gas, and oil service. The valve is commonly specified for steam systems and boiler plant applications.
Available from 2" to 48" in Class 150–900, these valves accept manual, gear, motor, or pneumatic actuation. Supplied with genuine raw materials, material test certificates, and hydraulic test certificates; third-party inspection is available. Certified to CE/PED, ISO, ATEX, SIL, and NACE MR0175.
Cast Steel Gate Valve
2"–48", Class 150–900 cast steel OS&Y gate valve with low fluid resistance and bidirectional flow capability.
Bidirectional Flow
Non-rising stem and symmetric gate design places no restriction on the direction of media flow.
Low Fluid Resistance
Full bore gate opening minimizes pressure drop and turbulence for efficient pipeline operation.
Cast Steel Body
Robust cast steel construction provides high structural integrity across the full Class 150–900 pressure range.
Flexible Actuation
Available with handwheel, gear, motor, or pneumatic actuators to suit manual or automated operations.
Full Documentation
Supplied with material test certificates, hydraulic test certificates, and optional third-party inspection.
SPECIFICATIONS
GENERAL
3 SPECSMATERIALS
1 SPECEND CONNECTIONS & ACTUATION
2 SPECSSTANDARDS & CERTIFICATIONS
2 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Cast Steel Gate Valve.
