Frequency Inverters

RNB5000

High-performance frequency inverter series supporting V/F, open loop vector, and closed loop vector control, designed for fans, pumps, textile, air compressors, oilfields, coal mines, and heavy industrial applications.

Rated Input Voltage380V / 690V / 1140V

Control ModeV/F; Open Loop Vector; Closed Loop Vector

Max Output Frequency3000 Hz (V/F); 300 Hz (Vector)

Start Torque0.5 Hz / 150% motor rated torque

Overload Capacity150% for 60 s; 180% for 3 s

REQUEST A QUOTE MANUFACTURER SITE

Product Details

OVERVIEW

The RNB5000 Series is a high-performance frequency inverter supporting V/F control, open loop vector, and closed loop vector control modes for three-phase AC motors.

Targeting common industrial usage, it is suitable for fan and pump loads as well as demanding automation applications across textile, stone sawing, air compressor, oilfield, coal mine, ball mill, and injection molding sectors. Closed-loop vector control achieves 0 Hz / 180% starting torque with a speed range of 1000:1, and the series supports multi-voltage ratings of 380V, 690V, and 1140V.

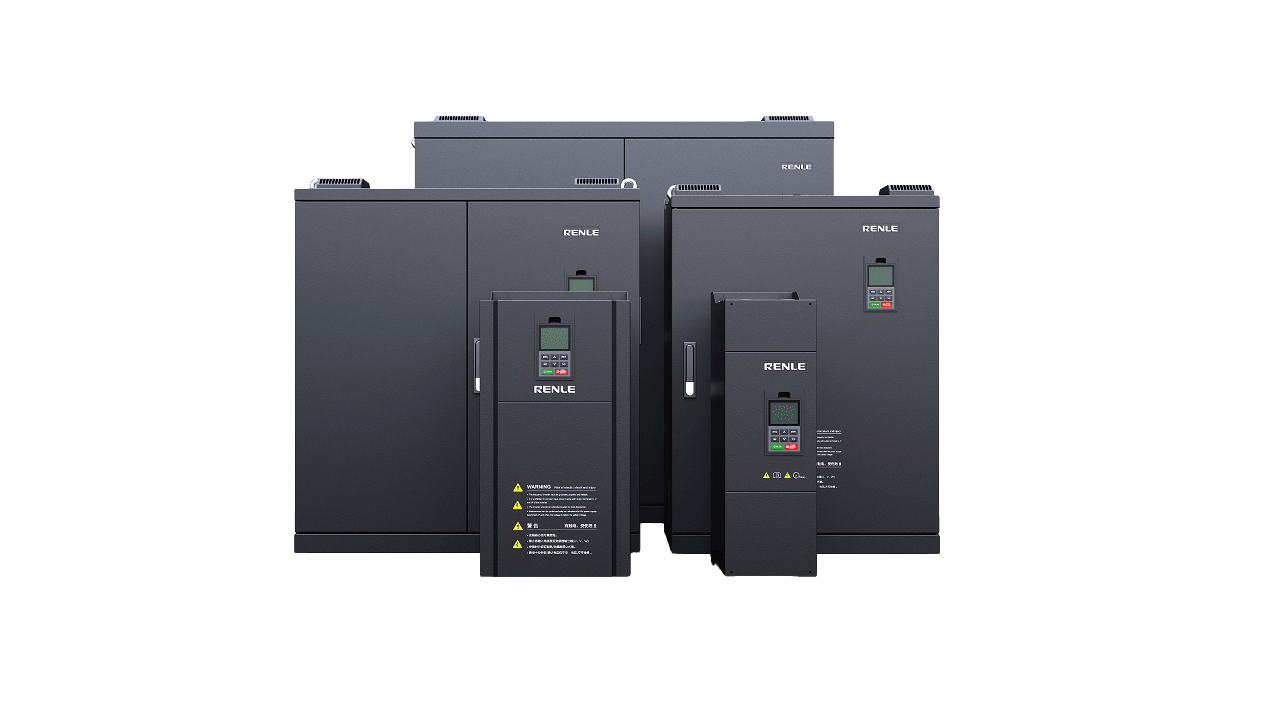

RNB5000

High-Performance Current Vector Control

High starting torque can be realized for induction motors: V/F control delivers 1 Hz / 150% torque at a 60:1 speed range; open loop vector delivers 0.5 Hz / 150% torque at 100:1; closed loop vector delivers 0 Hz / 180% torque at 1000:1.

Three Motor Parameter Self-Tuning Methods

Static self-tuning for motors connected to machinery during debugging; rotation self-tuning for high starting torque and precision; online parameter self-tuning detects motor characteristic changes during operation.

Power Outage and Instantaneous Stop Handling

Speed tracking for fluid machinery (fans, blowers) on power restoration. Instantaneous non-stop function automatically compensates when low bus voltage is detected, reducing dependence on UPS systems in film production lines.

Advanced Debugging Tools

Application selection auto-sets optimal parameters to reduce trial run time. Keyboard supports parameter copy (upload/download). xPowerTool provides real-time monitoring, parameter configuration, oscilloscope functions, and management of multiple inverters simultaneously.

xLoaderTool for Online Software Upgrade

Dedicated tool for online firmware upgrades, enabling product updates without hardware replacement.

Master-Slave Control

Configurable as master or slave for multi-motor systems. Master selects the synchronized reference (frequency, operating frequency, or torque); slave follows master commands. Supports drooping control for balanced load distribution.

Brake Logic and Safety Shutdown

Supports standard brake logic and safety shutdown functions. Suited for construction lifting equipment, tower cranes, and bridge applications.

Speed-Limiting Torque Control

Supports speed-limiting mode under a variety of torque control configurations for precise torque management.

SPECIFICATIONS

BASIC FEATURES

15 SPECS

01Rated Input Voltage

380V / 690V / 1140V

02Input Frequency

50 / 60 Hz

03Voltage Fluctuation

−15% ~ +10%

04Voltage Unbalance

< 3%

05Frequency Range (Input)

47 ~ 63 Hz

06Control Mode

V/F control; open loop vector; closed loop vector

07Frequency Resolution — Digital

0.01 Hz

08Frequency Resolution — Analog

0.5% × max frequency

09Max Output — V/F Control

3000 Hz

10Max Output — Vector Control

300 Hz

11Speed Control Range — V/F

1:60

12Speed Control Range — Vector

1:100

13Carrier Frequency

0.5 ~ 12.0 kHz (auto-adjusted by heatsink temperature)

14Start Torque

0.5 Hz / 150% of motor rated torque

15Overload Capacity

150% rated current for 60 s; 180% for 3 s

BASIC FUNCTIONS

12 SPECS

01Operation Mode

Keyboard; terminal (2-wire/3-wire); RS485 communication; switchable

02V/F Curve

Straight line, multistage, multiple powers

03Accel/Decel Curve

Straight line or S-curve; 4 sets; range 0.1 ~ 6000.0 s

04Torque Boost

Automatic or manual

05Speed Tracking

Available across all power ratings

06Motor Braking

DC braking, energy consumption braking, flux braking

07DC Braking Frequency

0.00 Hz ~ max frequency

08DC Braking Time

0.0 ~ 100.0 s

09DC Braking Current

0.0 ~ 100% of motor rated current

10Flux Braking

For rapid stop / energy regeneration; prevents overvoltage

11Wave-by-Wave Current Limiting

Minimizes overcurrent faults

12Overcurrent/Overvoltage Control

Auto-limits current/voltage during operation

SPECIAL FUNCTIONS

10 SPECS

01Terminal Delay

0.0 ~ 3000.0 s response delay for input/output switching terminals

02Jog Control

Keyboard or terminal; 0.00 Hz ~ max frequency

03Jog Accel/Decel Time

0.1 ~ 6000.0 s

04Multistage Speed / Simple PLC

Up to 16-stage speed operation

05Built-in PID

Two groups; supports closed-loop process control

06Fixed Length & Counting

Counting convertible to length for display or fixed-length control

07Swing Frequency

Fixed swing, sudden change, and period output at any frequency

08Timing Control

0 ~ 65000 h stop control

09Instantaneous Power Failure Non-stop

Frequency reduction allows load feedback energy to compensate bus voltage drop

10Multifunction Jog Key

Jog, direction switching, command source switching

PERIPHERAL TERMINALS

6 SPECS

01Reference Power Supply

10V / 30 mA (for analog input signal)

02Control Power

24V / 200 mA (for switching terminals)

03Analog Input

2 routes; voltage or current selectable; ranges: 0~10V, 0~20mA, −10~+10V; programmable

04Analog Output

2 routes; voltage or current selectable; ranges: 0~10V, 0~20mA; programmable

05Digital Input

6 multifunctional terminals; PNP and NPN modes; X6 supports high-speed pulse 0~100 kHz

06Digital Output

2 open collector outputs (Y2: high-speed pulse 0~100 kHz); 2 relay output terminals

FAULT PROTECTION

1 SPEC

01Protection Types

Input/output phase failure, undervoltage, overvoltage, overcurrent, overload, short circuit, module fault, peripheral fault, self-defined fault

ENVIRONMENT & INSTALLATION

8 SPECS

01Installation Site

Indoors; no direct sun, dust, water, salt, oil mist, vapor, flammable or erosive gas

02Altitude ≤ 1000 m

Full rated operation

03Altitude > 1000 m

Derate 1% per 100 m increase

04Altitude > 3000 m

Consult manufacturer

05Operating Temperature

−10°C ~ +40°C; at 40°C~50°C derate 3% per 1°C increase

06Humidity

< 95% RH, no condensation

07Vibration

< 0.6 g

08Storage Temperature

−25°C ~ +65°C

Use Cases

APPLICATIONS

Engineered for demanding environments across multiple industries and operating conditions.

01Fans and Pumps

02Textile and Stone Sawing

03Air Compressors

04Oil Fields and Coal Mines

05Ball Mills and Injection Molding

06Construction Lifting and Tower Cranes
