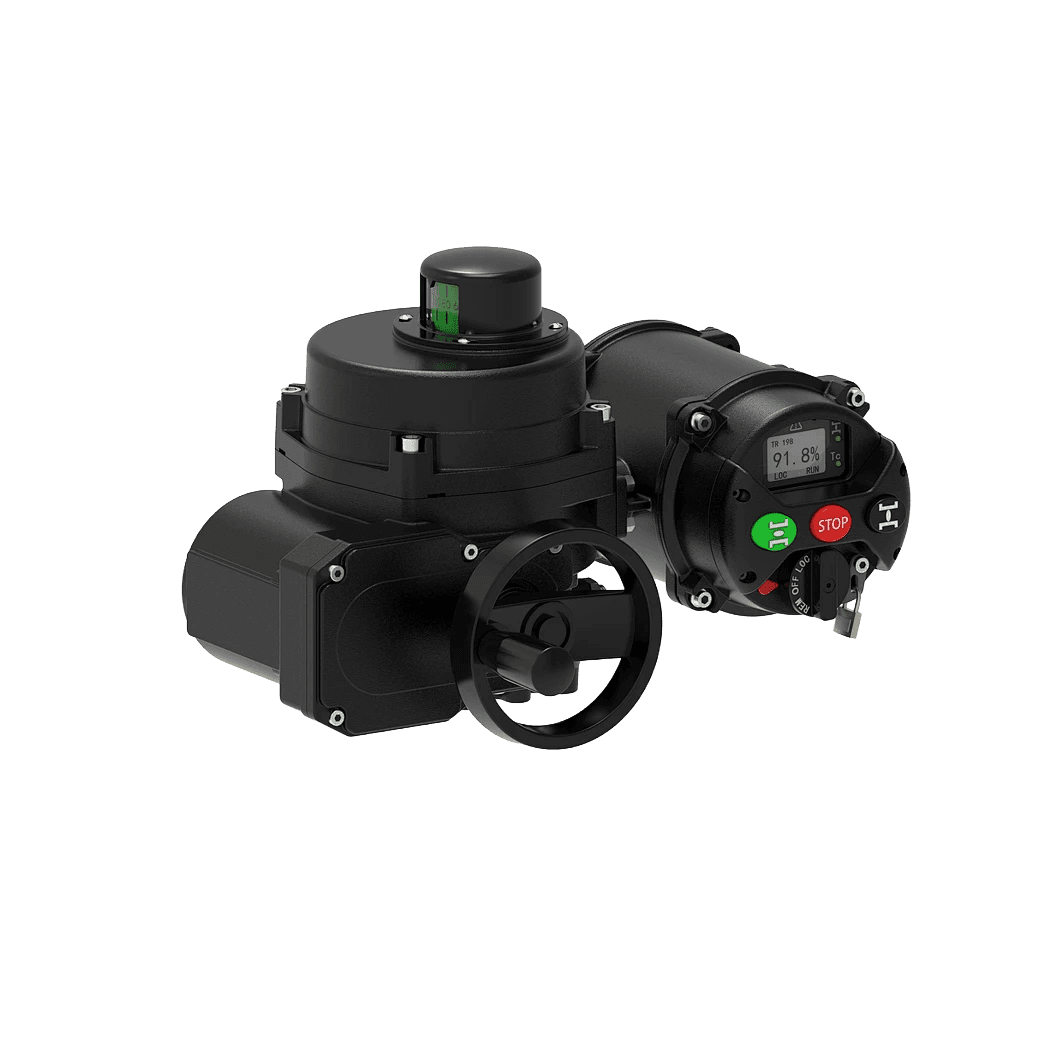

COMPACT MODULE ELECTRIC ACTUATOR
Compact modular electric actuator (VTEQ series) with 50–3,000 N.m direct torque, IP67/IP68 protection, Exd II CT6 explosion-proof rating, and 1% control accuracy for space-constrained valve installations.
Product Details
OVERVIEW
The VTEQ series Compact Module Electric Actuator is a new-generation actuator featuring a modular design with extensible functions, suitable for butterfly valves, ball valves, gate valves, and other valve types. Its compact structure enables installation in confined spaces while accommodating a wide range of adaptive valve types. Efficient transmission with structural self-locking ensures reliable positioning.
Standard protection is IP67; IP68 is optional. Explosion-proof rating reaches up to Exd II CT6, making the VTEQ suitable for hazardous area installations. A double anti-condensation design reduces the probability of electrical failure. The independent electronic control unit includes protection circuitry and achieves control accuracy up to 1%. Operating voltage is AC 110V or 220V (±10%, 1-phase, 50/60 Hz ±5%); DC 24V and AC 380V are optional.
Compact Module Electric Actuator
Compact modular electric actuator (VTEQ series) with 50–3,000 N.m direct torque, IP67/IP68 protection, Exd II CT6 explosion-proof rating, and 1% control accuracy for space-constrained valve installations.
Compact Modular Design
Modular construction with extensible functions enables installation in small spaces and easy adaptation to different valve types.
High Explosion-Proof Rating
Explosion-proof rating up to Exd II CT6 for safe operation in hazardous and classified areas.
Double Anti-Condensation Design
Dual anti-condensation measures reduce the probability of electrical failure in humid or high-humidity environments.
High Control Accuracy
Independent electronic control unit with protection circuitry achieves control accuracy up to 1%.
SPECIFICATIONS
GENERAL
1 SPECPERFORMANCE
4 SPECSELECTRICAL
2 SPECSTEMPERATURE OPTIONS
1 SPECUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
