Condition Monitors

VM-7 SERIES

Fully digital large rotating machinery condition monitor. Covers 17 measurement parameters for TSI and protective monitoring, designed to API 670 and ISO standards.

TypeFully digital rack-mount condition monitor

Measurement Parameters17 types

Module SlotsUp to 12 (slots 0–11)

StandardAPI 670 / ISO compliant

CommunicationUSB, Network (via VM-742B)

REQUEST A QUOTE MANUFACTURER SITE

Product Details

OVERVIEW

VM-7 Series is a fully digitalized condition monitor designed in accordance with API standard 670 and ISO standards, scalable to the size of the rotating machinery being monitored.

The multi-functional monitor modules cover 17 measurement parameters used for TSI (Turbine Supervisory Instrumentation) and other rotating machinery monitoring. Modules can be configured on PC to meet specific monitoring needs.

The system supports up to 12 monitor module slots plus power supply, communication and relay modules, with optional analysis and diagnostic capabilities through the infiSYS platform.

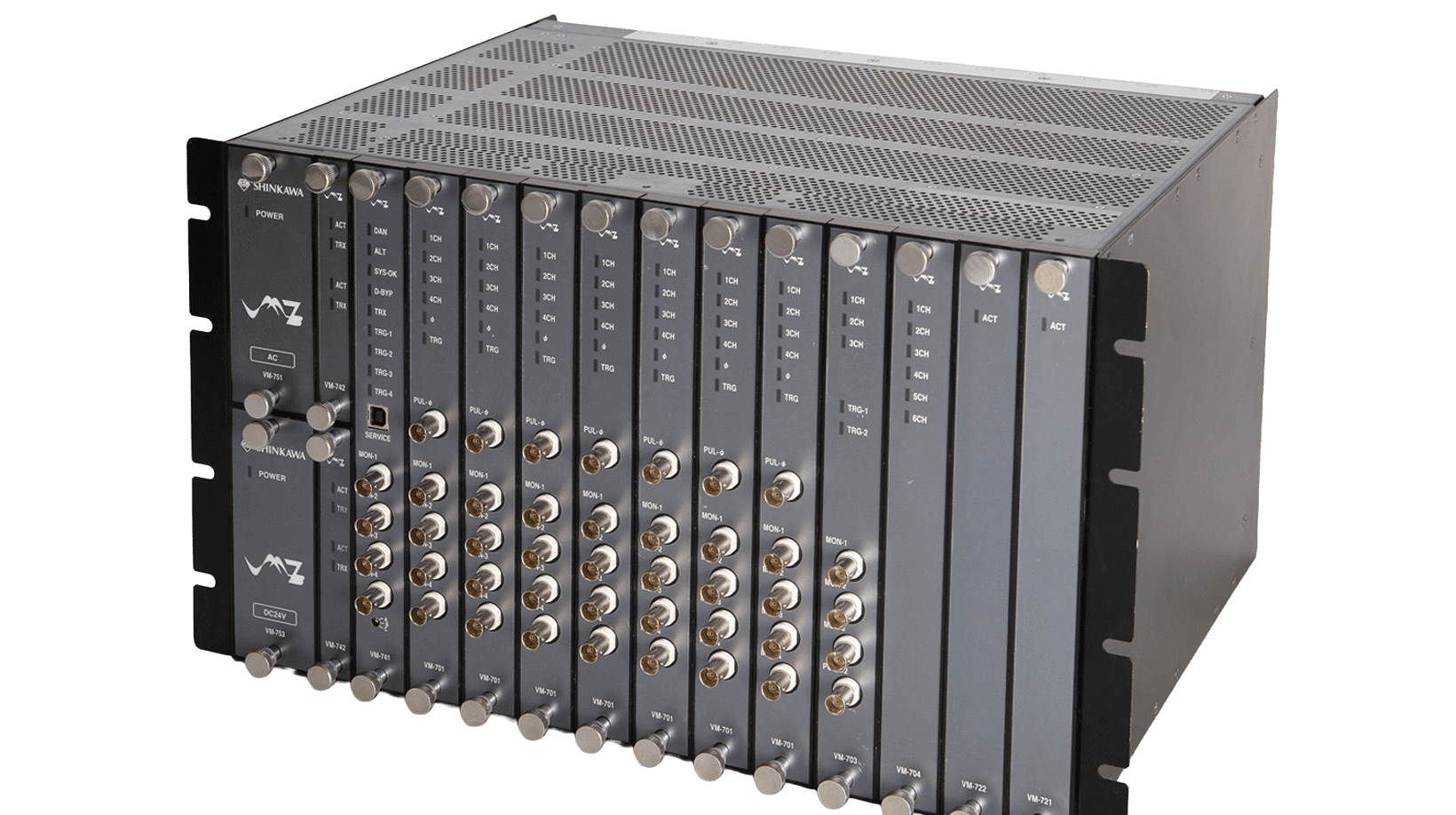

VM-7 Series

Fully digital large rotating machinery condition monitor. Covers 17 measurement parameters for TSI and protective monitoring, designed to API 670 and ISO standards.

Fully digital architecture

All monitor modules are fully digitalized, enabling advanced signal processing, PC-based configuration and integration with analysis systems.

17 measurement parameters

Covers vibration, displacement, absolute vibration, speed, eccentricity, temperature, rod drop, differential expansion and more in a single system.

API 670 and ISO compliant

Designed to meet the requirements of API standard 670 for protective monitoring of critical rotating machinery in plants.

PC-based configuration

Device Config software allows system configuration in or out of the field via USB connection to the rack.

MCL View monitoring software

PC software displays measurement values and monitoring status of each module in real-time bar graph and numerical formats.

Optional analysis and diagnostics

Optional analysis board enables integration with infiSYS View Station for measured values, analysis plots and diagnostic results.

Achilles certified

Achilles certification for supply chain and procurement qualification in the oil & gas and utilities industries.

SPECIFICATIONS

MONITOR MODULES

7 SPECS

01VM-701B

Vibration / Displacement Monitor Module

02VM-702B

Absolute Vibration Monitor Module

03VM-703B

Tachometer & Eccentricity Monitor Module

04VM-704B

Temperature Monitor Module

05VM-705B

18-Channel Temperature Monitor Module

06VM-706B

Rod Drop Monitor Module

07VM-707B

Aeroderivative Gas Turbine Monitor Module

SYSTEM MODULES

7 SPECS

01VM-721B

18-Channel Relay Module

02VM-722B

9-Channel Relay Module

03VM-741B

Local Communication & Phase Marker Module (Slot 0)

04VM-742B

Network Communication Module

05VM-751B

Primary Power Supply Module (Slot P1)

06VM-752B

Secondary Power Supply Module (Slot P2)

07VM-76B

Instrument Rack

SOFTWARE

3 SPECS

01VM-771B MCL View

Real-time monitoring display (bar graph, measured values, status)

02VM-772B Device Config

PC-based system configuration via USB

03infiSYS View Station

Analysis plots and diagnostic results (requires optional analysis board)

RACK CONFIGURATION

4 SPECS

01Power Supply Slots

P1 (primary), P2 (redundant)

02Communication Slots

C1, C2 (network communication)

03Slot 0

Local Communication & Phase Marker Module (required)

04Slots 1–11

Monitor, relay, or blank modules

Use Cases

APPLICATIONS

Engineered for demanding environments across multiple industries and operating conditions.

01Steam turbines

02Gas turbines (including aeroderivative)

03Generators

04Large compressors

05Critical rotating machinery

06TSI (Turbine Supervisory Instrumentation)
