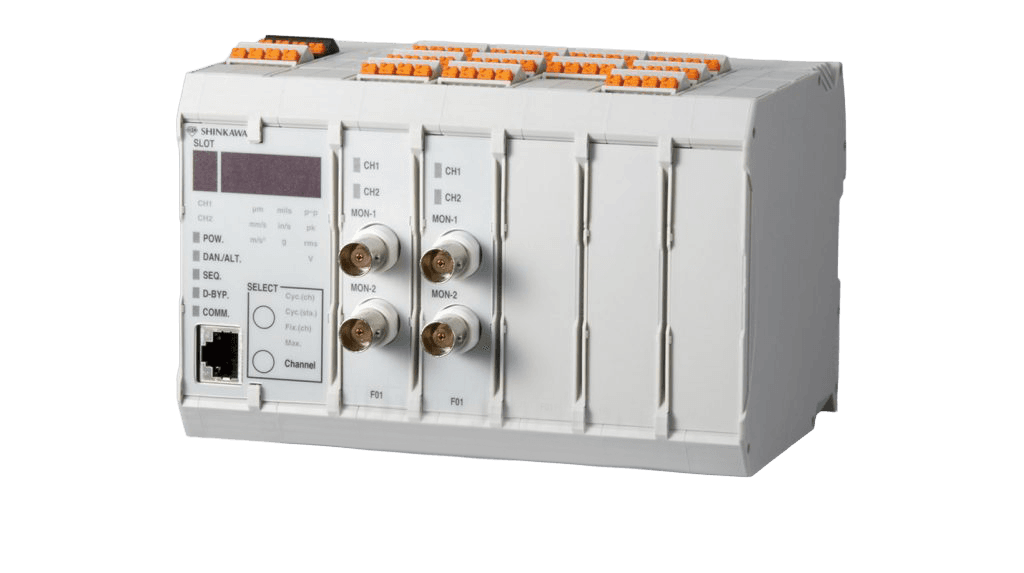

VM-25 SERIES

Compact DIN-rail mount vibration condition monitor with Modbus/TCP communication. IoT-ready, field-configurable, and expandable up to 8 input channels for general-purpose rotating machinery.

TypeCompact DIN-rail condition monitor

Input Channels2 / 4 / 6 / 8 ch (configurable)

CommunicationModbus/TCP (Ethernet)

Power Supply24 VDC (22–26 VDC)

Dimensions158 × 99 × 113 mm

REQUEST A QUOTE MANUFACTURER SITE

Product Details

OVERVIEW

VM-25 is a compact condition monitoring system with standard Modbus/TCP digital communication, making it IoT-ready for integration with plant control and monitoring networks.

The system is expandable and configurable with 2 to 8 vibration measurement channels, isolated recorder outputs, and relay outputs in a modular slot-based architecture. Its small footprint (approx. 158 × 99 × 113 mm) requires minimal panel space.

Field-configurable input sensors, monitor ranges, alarm settings and other parameters can be changed via the VM-25S01 Device Config PC software, allowing adaptation to changing monitoring needs without factory modification.

VM-25 Series

Compact DIN-rail mount vibration condition monitor with Modbus/TCP communication. IoT-ready, field-configurable, and expandable up to 8 input channels for general-purpose rotating machinery.

Digital communication (Modbus/TCP)

Standard Ethernet-based Modbus/TCP communication enables integration with PLC, DCS, SCADA and IoT platforms for remote monitoring.

Configurable channel count

Available in multiple configurations from 2 to 8 input channels, with optional isolated recorder output and relay output slots.

Field configurable

Input sensors, monitor ranges, alarm settings, filter frequencies and more can be changed in the field via VM-25S01 Device Config software.

Compact DIN-rail mount

Small footprint of approximately 158 × 99 × 113 mm mounts on standard 35 mm DIN rail, requiring minimal panel space.

Hazardous area certified

Non-incendive certification: CSA C/US Class I Division 2, ATEX Ex ec nC IIC T4 Gc, IECEx.

SPECIFICATIONS

VIBRATION MEASUREMENT

11 SPECS

01Input Channels

2 channels per slot (up to 4 slots = 8 ch)

02Compatible Sensors

FK-202F (eddy current), CV-86/CV-87 (velocity), CA-302 (acceleration), voltage signal

03Monitor Types

Displacement vibration, velocity vibration, acceleration vibration

04Monitor Range

1 to 1,000 (configurable)

05Units

μm, mils, mm/s, in/s, m/s², g

06Detection

pk-pk, pk, rms

07AC Measurement Range

0 to 9 V pk

08I/O Conversion Accuracy

±1.5% F.S. at 100 Hz, 25°C / ±3.0% F.S. at −20 to +65°C

09High-pass Filter

2, 5, 10, 20 Hz (−3 dB, selectable)

10Low-pass Filter

500 Hz, 1 kHz, 4 kHz, 10 kHz (−3 dB, selectable)

11Input Impedance

Approx. 50 kΩ

ALARM

5 SPECS

01Alarm Set Points

DANGER (1 point) + ALERT (1 point) per channel

02Alarm Set Range

0 to 100% of monitor range

03Alarm Delay Time

0 to 5 sec (0.5 sec step)

04Alarm Reset

Auto-reset or self-hold (selectable)

05Alarm Indicators

OK (green), DANGER (red), ALERT (red flashing)

OUTPUT

5 SPECS

01Recorder Output (Non-isolated)

4–20 mA DC or 1–5 V, 2 ch per slot

02Max Load Resistance (Current)

600 Ω

03Isolated Recorder Output

4–20 mA or 1–5 V, 4 ch per slot (optional)

04Relay Output

4 ch per slot, SPDT dry contact, 250 VAC/2A, 30 VDC/2A

05Monitor Output

BNC (front) + terminal block (bottom), 100 Ω impedance

COMMUNICATION

5 SPECS

01Network

Ethernet 10Base-T / 100Base-TX

02Protocol

Modbus/TCP (RTU mode)

03Connector

RJ-45 (shared with Device Config)

04Transmitted Data

Measurement values, peak values, gap/bias voltage, alarm status, alarm settings

05Remote Control

Channel bypass, DANGER bypass, peak hold reset, alarm reset, sequence mode

DISPLAY

3 SPECS

01Display Type

4-digit 7-segment red LED (8 mm character height)

02Display Modes

All-channel cycle, specific channel cycle/fixed, all-channel max value

03Status LEDs

Power (green), alarm (red), sequence (yellow), DANGER bypass (green), communication (green)

ENVIRONMENTAL & PHYSICAL

7 SPECS

01Operating Temperature

−20 to +65°C

02Storage Temperature

−30 to +85°C

03Relative Humidity

20 to 90% RH (non-condensing)

04Power Supply

24 VDC (22–26 VDC), 24 W max

05Dimensions

Approx. 158.2 (W) × 99 (H) × 112.85 (D) mm

06Mounting

35 mm DIN rail

07Mass (All full load)

Max 0.9 kg

EXPLOSION PROTECTION

3 SPECS

01CSA C/US

Class I, Division 2, Groups A, B, C, D T4

02ATEX

Ex ec nC IIC T4 Gc

03IECEx

Ex ec nC IIC T4 Gc

Use Cases

APPLICATIONS

Engineered for demanding environments across multiple industries and operating conditions.

01Pumps

02Motors

03Fans

04Compressors

05General-purpose rotating machinery

06Water & wastewater plants
