Condition Monitors

VM-21 SERIES

SHINKAWA Electric

Compact signal conditioners that convert vibration, displacement, temperature and speed transducer signals to isolated 4-20 mA or 1-5 VDC outputs for condition based maintenance.

TypeCompact signal conditioner
Output4-20 mA DC or 1-5 VDC (isolated)
I/O Accuracy±1% F.S. at 25°C
Power Supply24 VDC or 100-240 VAC/DC
WeightApprox. 110 g per module
REQUEST A QUOTEMANUFACTURER SITE

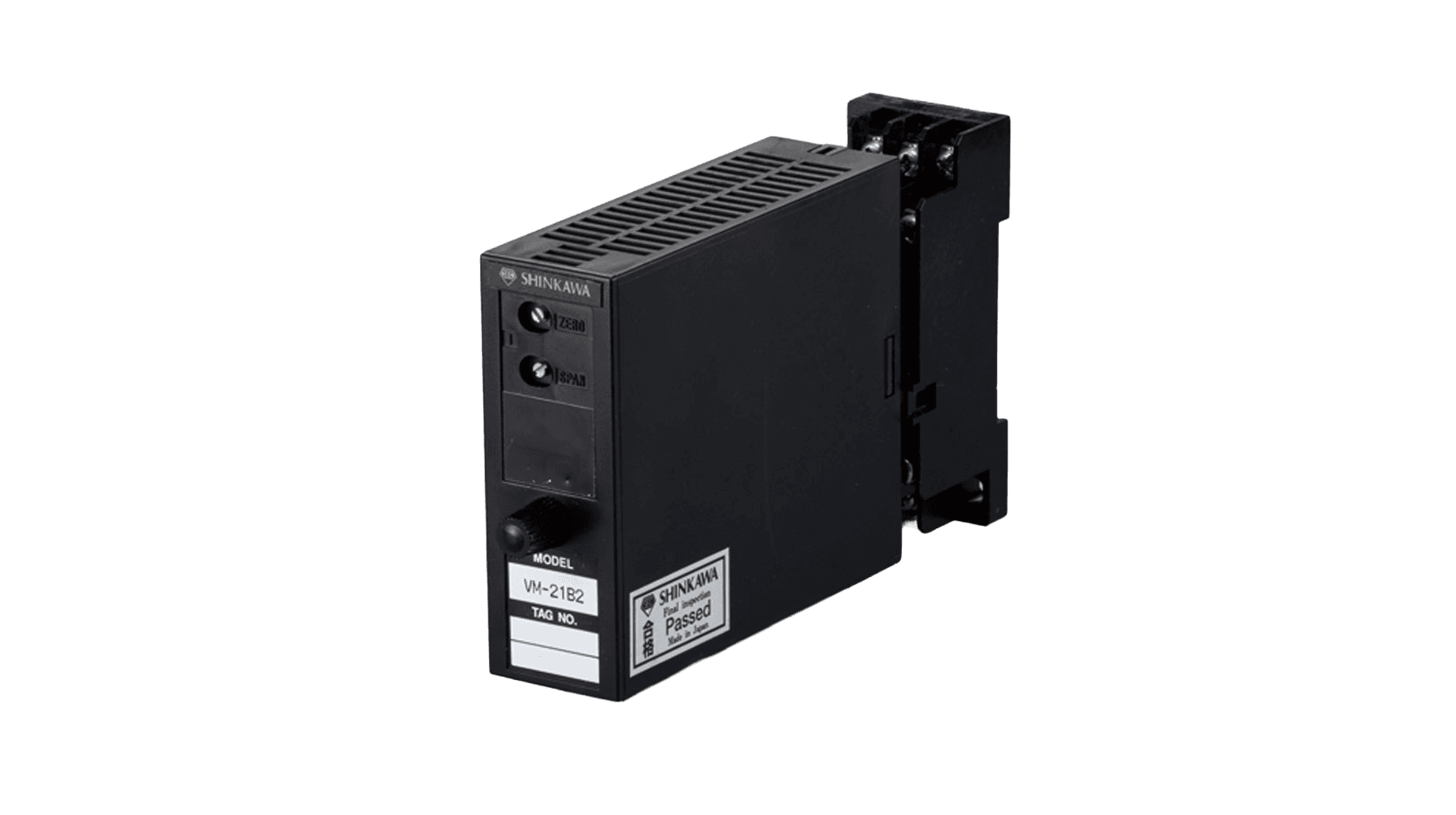

VM-21 Series

Product Details

OVERVIEW

The VM-21 series receives signals from transducers mounted on rotating machines and converts them into isolated 4-20 mA DC or 1-5 VDC signals, making condition based maintenance (CBM) accessible and cost-effective.

A wide module lineup covers displacement vibration (VM-21K), velocity vibration (VM-21U), acceleration vibration (VM-21B), multi-input vibration (VM-21A), 3-wire LVDT (VM-21P), 6-wire LVDT (VM-21D), thrust position (VM-21T), revolution speed (VM-21R), temperature (VM-21F), and process signals (VM-21E).

Modules can be mounted individually with the VM-21G socket on DIN rail, or up to 8 modules in the VM-21H backplane unit for rack or wall mounting.

VM-21 Series

Compact signal conditioners that convert vibration, displacement, temperature and speed transducer signals to isolated 4-20 mA or 1-5 VDC outputs for condition based maintenance.

Small and lightweight

Each signal conditioner module weighs approximately 110 g, enabling compact installations in space-constrained panels.

Selectable mounting types

Individual DIN-rail mounting with VM-21G socket, or up to 8 modules in the VM-21H backplane unit for rack or wall mounting.

Power supply options

Supports 24 VDC or 100-240 VAC/DC universal power supply depending on model selection.

Waveform output for diagnostics

Buffered waveform output provides raw transducer signals for machine diagnostics and analysis systems.

Burn-down function

Detects transducer failure and drives output below 0.8 mA (0.2 V) to signal an abnormal condition to the control system.

Wide module lineup

10 module types covering displacement, velocity, acceleration, thrust, LVDT, speed, temperature, and process signal inputs.

Isolated output

All signal outputs are galvanically isolated with 2,000 VAC withstand voltage between input, output, power and ground.

SPECIFICATIONS

SIGNAL CONDITIONER MODULES

10 SPECS
VM-21K
Displacement input vibration (FK-202F, VK-202A)
VM-21U
Velocity input vibration (CV-86)
VM-21B
Acceleration input vibration (CA-302, CA-721/722)
VM-21A
Multi-input vibration (CA/CV series, velocity/acceleration/displacement)
VM-21P
3-wire LVDT signal conditioner (LS series)
VM-21D
6-wire LVDT signal conditioner (LF series)
VM-21T
Displacement input thrust (FK-202F, FK-452F)
VM-21R
Revolution signal conditioner (RD/FK/VK/MS series)
VM-21F
Temperature (thermocouple K/E/J/T/R/S/B/N/W3/W5, RTD Pt100/JPt100/Pt50, mV)
VM-21E
Process signal conditioner (1-5 V or 4-20 mA input)

COMMON SPECIFICATIONS

6 SPECS
Output (Isolated)
1-5 VDC (250 Ω) or 4-20 mA DC (max load 600 Ω)
I/O Conversion Accuracy
±1% F.S. at 25°C, ±2% F.S. at 0-50°C
Input Impedance
50 kΩ (vibration modules)
Insulation Resistance
100 MΩ min at 500 VDC
Withstand Voltage
2,000 VAC for 1 minute
Buffered Output
Via buffer amplifier, 100 Ω output impedance

VM-21K (DISPLACEMENT VIBRATION)

5 SPECS
Input Transducer
FK-202F, VK-202A (787 mV/100 μm)
Measuring Range
0-100 / 0-125 / 0-200 μm pk-pk
Frequency Response
5 Hz to 4 kHz (−3 dB)
Response Speed
τ = 500 ms, 63% response
Power Supply Output
−24 VDC (30 mA, short-circuit protected)

VM-21R (REVOLUTION)

4 SPECS
Input Transducer
RD Series, FK Series, VK Series, MS Series
Measuring Range
0-5,000 to 0-100,000 rpm (selectable)
Input Frequency
0.01 Hz to 10 kHz, min pulse width 50 μs
Min Input Voltage
2 V pk-pk

ENVIRONMENTAL & PHYSICAL

5 SPECS
Operating Temperature
0 to 50°C
Relative Humidity
10 to 90% RH (non-condensing)
Module Weight
Approx. 110 g
Casing Material
Modified polyphenylene oxide (black)
CE Marking
24 VDC power supply specifications only

MOUNTING OPTIONS

3 SPECS
VM-21G Socket
Single module, DIN rail or wall mount, 29.5 × 72 × 30 mm, 50 g
VM-21H Backplane
Up to 8 modules, rack or wall mount, 444.5 × 130 × 46.8 mm, 2.2 kg
VM-21H Redundant Power
Available for 24 VDC specification (dual DC input)

Use Cases

APPLICATIONS

Engineered for demanding environments across multiple industries and operating conditions.

01Pumps
02Motors
03Fans
04Compressors
05Turbines
06General rotating machinery CBM
