GATE VALVE WITH PNEUMATIC ACTUATOR
Complete pneumatic gate valve assembly (IP68) combining Athena API 600 gate valves and Valen Tech linear pneumatic actuators; 2"–48", Class 150–1500, −29°C to +425°C, carbon or stainless steel, spring return or double acting.
Product Details
OVERVIEW
The Pneumatic Gate Valve combines Athena Group gate valves designed to API 600 with Valen Tech linear pneumatic actuators in a complete equipment solution for industrial on/off service. The linear actuator drives the gate element to open or close against the flow. Available in spring-return and double-acting configurations for fail-safe and standard service requirements.
Available in sizes from 2" to 48" and pressure ratings from Class 150 to 1500. The valve operating temperature range is −29°C to +425°C. Body materials include carbon steel and stainless steel. The actuator provides IP68-rated enclosure protection and operates from −29°C to +100°C, with a −60°C low-temperature option available on request.

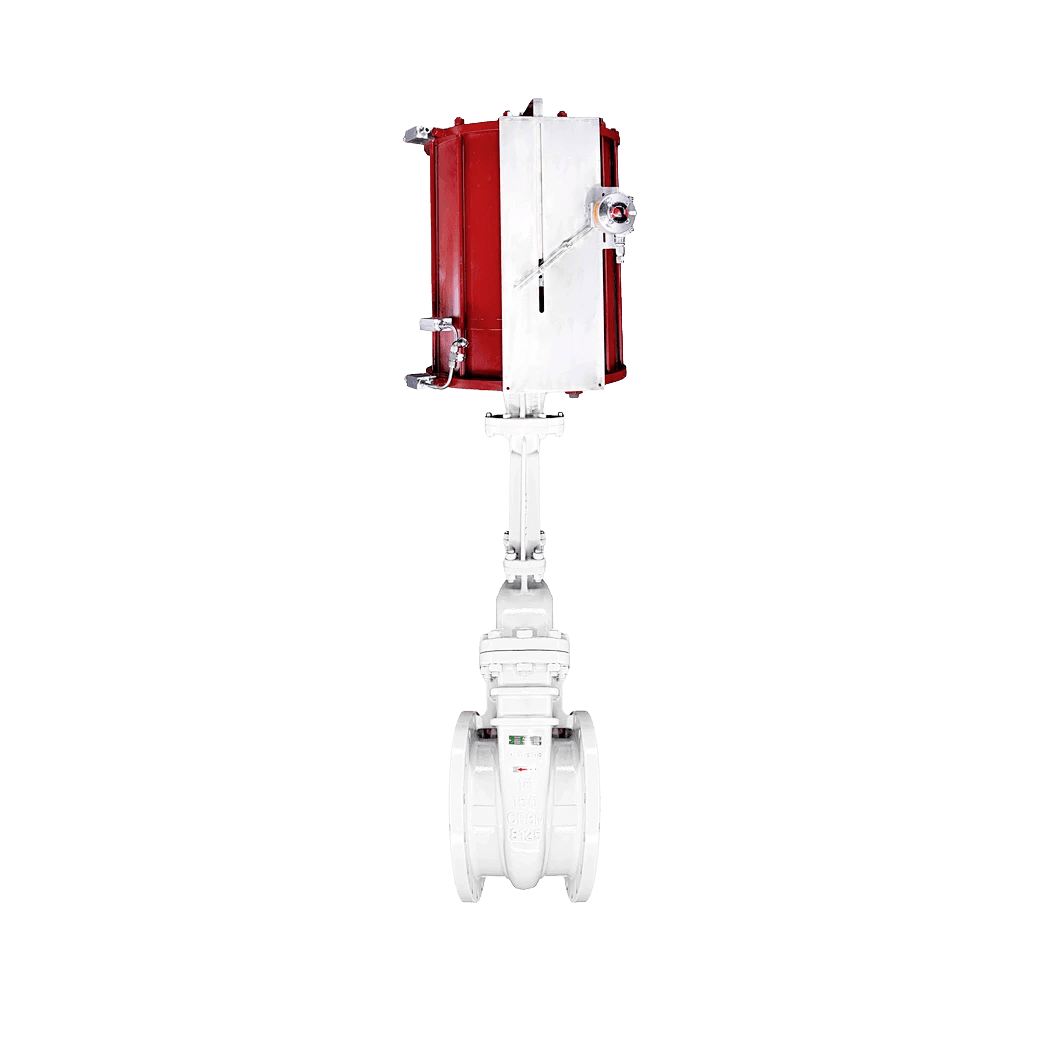

Gate Valve with Pneumatic Actuator
Complete pneumatic gate valve assembly (IP68) combining Athena API 600 gate valves and Valen Tech linear pneumatic actuators; 2"–48", Class 150–1500, −29°C to +425°C, carbon or stainless steel, spring return or double acting.
API 600 Gate Valve Design
Gate valve designed to API 600, ensuring compliance with industry standards for industrial isolation service.
Spring Return and Double Acting Options
Available in spring-return and double-acting configurations for fail-safe on air loss or standard bidirectional operation.
IP68 Enclosure Protection
IP68-rated actuator enclosure provides full waterproof protection for demanding outdoor and submerged-service installations.
Wide Valve Temperature Range
Valve operating temperature from −29°C to +425°C accommodates ambient and high-temperature process service.
SPECIFICATIONS
VALVE SPECIFICATIONS
5 SPECSACTUATOR SPECIFICATIONS
3 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Gate Valve with Pneumatic Actuator.
