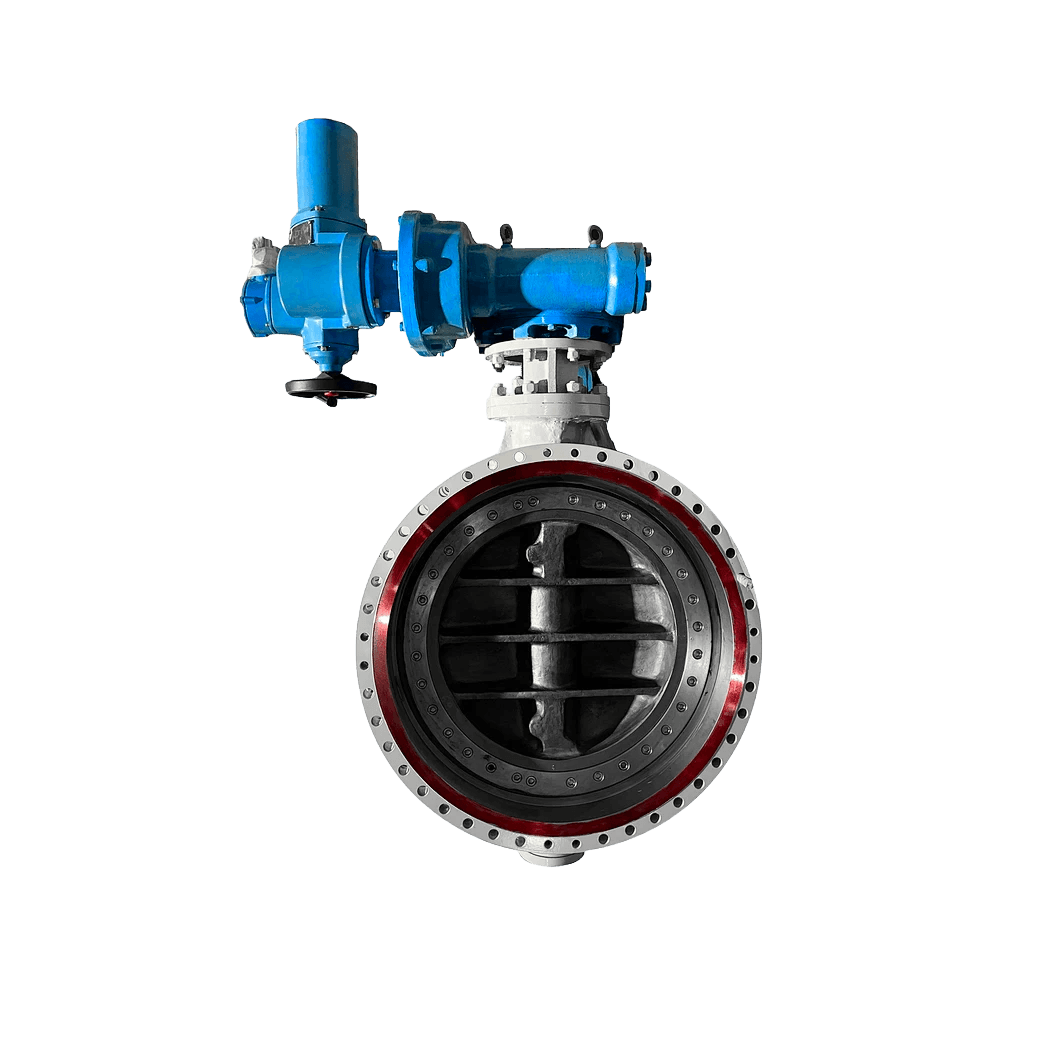

BUTTERFLY VALVE WITH ELECTRIC ACTUATOR
Complete electric butterfly valve assembly (IP67/IP68) combining Athena butterfly valves and Valen Tech VTEM multi-turn electric actuators; 2"–40", Class 150–2500, multi-voltage support, carbon steel to Hastelloy, for precise automated flow regulation.
Product Details
OVERVIEW
The Electric Butterfly Valve combines Athena Group butterfly valves with Valen Tech VTEM series multi-turn electric actuators for precise automated regulation of fluid flow. When the actuator receives a control signal, it rotates the disc to various angles enabling precise flow regulation or complete opening/closing; a 90° rotation fully opens the valve while 0° closes it completely.
Available in sizes from 2" to 40" and pressure ratings from Class 150 to 2500. Body materials include carbon steel, stainless steel, alloy steel, Monel, Inconel, and Hastelloy. End connections include RF, RTJ, BW, lug, and wafer. Power options cover 12 VDC, 24 VAC, 24 VDC, 120 VAC, 220 VAC, and 380 VAC (50/60 Hz). The VTEM actuator delivers 100–3,000 N.m torque at 18–144 rpm with ambient temperature range −30°C to +70°C (−40°C optional). Standard enclosure protection is IP67, with IP68 and other optional ratings available.
Butterfly Valve with Electric Actuator
Complete electric butterfly valve assembly (IP67/IP68) combining Athena butterfly valves and Valen Tech VTEM multi-turn electric actuators; 2"–40", Class 150–2500, multi-voltage support, carbon steel to Hastelloy, for precise automated flow regulation.
Precise Disc Position Control
Electric actuator rotates the disc to any angle from 0° (closed) to 90° (fully open) for accurate modulating or on/off service.
Multi-Voltage Power Options
Accepts 12 VDC, 24 VAC, 24 VDC, 120 VAC, 220 VAC, and 380 VAC (50/60 Hz) for compatibility with diverse site power supplies.
Multiple Control Forms
Supports basic, intelligent, fieldbus, and separated control box designs for flexible integration into automation and DCS systems.
IP67/IP68 Waterproof Protection
IP67 enclosure as standard; IP68 and other optional ratings available for demanding or submerged-service installations.
SPECIFICATIONS
VALVE SPECIFICATIONS
4 SPECSACTUATOR SPECIFICATIONS
4 SPECSELECTRICAL
2 SPECSPROTECTION
2 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Butterfly Valve with Electric Actuator.
