BALL VALVE WITH PNEUMATIC ACTUATOR
Complete pneumatic ball valve assembly combining Athena ball valves and Valen Tech VTB series pneumatic actuators; 2"–40", Class 150–2500, single or double acting, carbon steel to Hastelloy, for industrial on/off and control service.
Product Details
OVERVIEW
The Pneumatic Ball Valve combines Athena Group valve technology with Valen Tech pneumatic actuators into a complete equipment solution for industrial on/off and control service. Compressed air drives the spherical valve core, providing a sensitive opening/closing response with high positioning accuracy. Multiple sealing configurations are available to meet strict shut-off requirements, and modular construction facilitates easy maintenance.
Available in sizes from 2" to 40" and pressure ratings from Class 150 to 2500. Body materials include carbon steel, stainless steel, alloy steel, Monel, Inconel, and Hastelloy. End connections include RF, RTJ, and BW. Valve seats are available in PTFE, PEEK, DEVLON, and RPTFE. The actuator operates single or double acting on 3–6 bar air supply. Weatherproof, corrosion-resistant, and fire safety protection options are available.

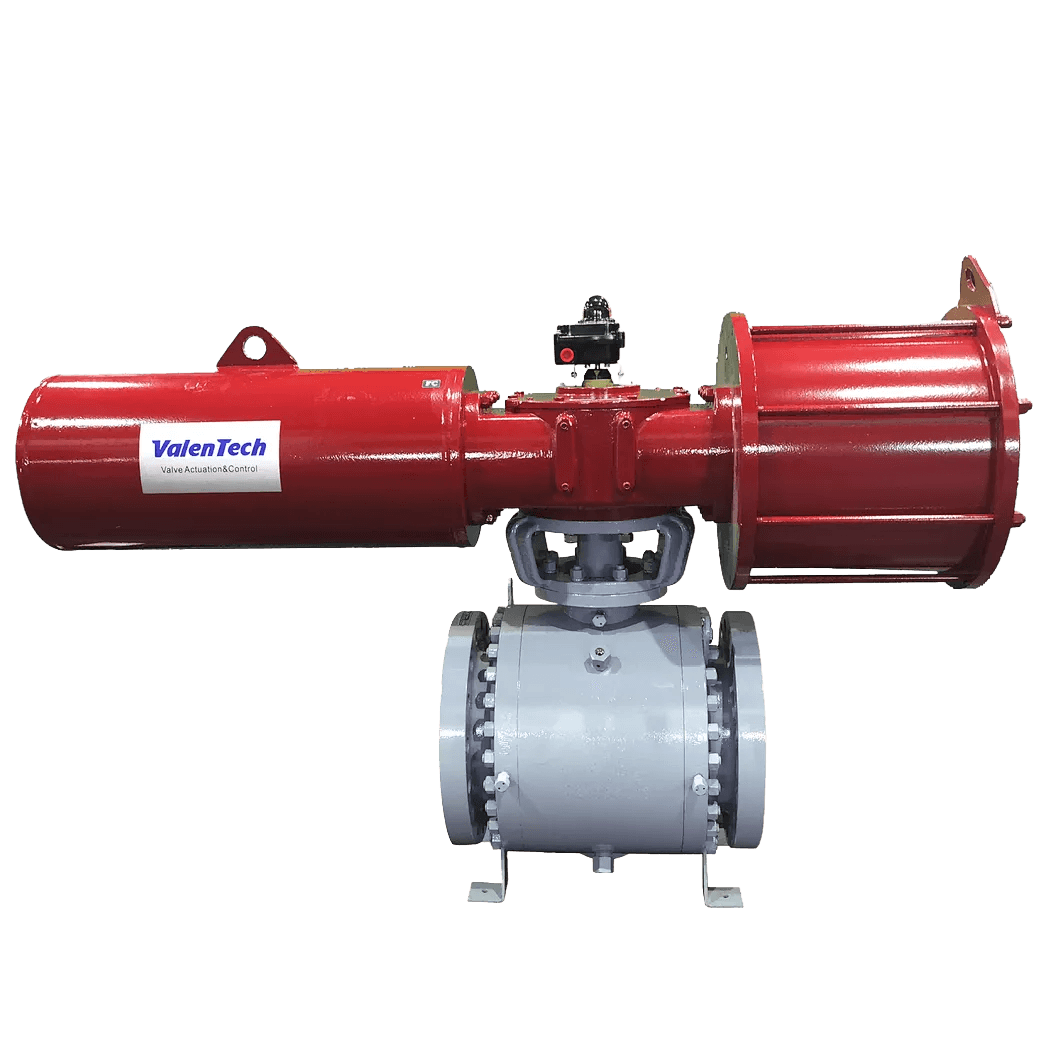

Ball Valve with Pneumatic Actuator
Complete pneumatic ball valve assembly combining Athena ball valves and Valen Tech VTB series pneumatic actuators; 2"–40", Class 150–2500, single or double acting, carbon steel to Hastelloy, for industrial on/off and control service.
Precise Control and High Positioning Accuracy
Compressed air enables sensitive opening/closing response and high positioning accuracy for reliable on/off and modulating service.
Multiple Sealing Configurations
PTFE, PEEK, DEVLON, and RPTFE seat options provide sealing configurations to meet strict shut-off requirements across varied media.
Wide Body Material Range
Body materials from carbon steel and stainless steel through Monel, Inconel, and Hastelloy accommodate corrosive and high-alloy service conditions.
Flexible Protection Options
Weatherproof, corrosion-resistant, and fire safety protection options available for harsh and hazardous environments.
SPECIFICATIONS
VALVE SPECIFICATIONS
5 SPECSACTUATOR SPECIFICATIONS
3 SPECSTEMPERATURE OPTIONS
4 SPECSPROTECTION OPTIONS
1 SPECUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Ball Valve with Pneumatic Actuator.
