BALL VALVE WITH ELECTRIC ACTUATOR

Complete electric ball valve assembly (IP67/IP68) combining Athena ball valves and Valen Tech VTEM multi-turn electric actuators; 2"–40", Class 150–2500, 100–3,000 N.m, carbon steel to Hastelloy, for automated on/off and control service.

Size Range2" – 40"

Pressure RatingClass 150 – 2500

Body MaterialCarbon Steel / SS / Alloy Steel / Monel / Inconel / Hastelloy

Actuator Torque100 – 3,000 N.m

IP RatingIP67 (IP68 optional)

REQUEST A QUOTE MANUFACTURER SITE

Product Details

OVERVIEW

The Electric Ball Valve combines Athena Group ball valves with Valen Tech VTEM series multi-turn electric actuators in a complete equipment solution for industrial on/off and control service. The electric actuator provides reliable valve positioning with IP67 standard enclosure protection and optional IP68 rating. Multiple optional protection ratings — including BT4/BT6 and CT4/CT6 — accommodate hazardous and demanding environments.

Available in sizes from 2" to 40" and pressure ratings from Class 150 to 2500. Body materials include carbon steel, stainless steel, alloy steel, Monel, Inconel, and Hastelloy. End connections include RF, RTJ, and BW. The VTEM series actuator delivers 100–3,000 N.m torque at 18–144 rpm, with ambient temperature range −30°C to +70°C (−40°C optional).

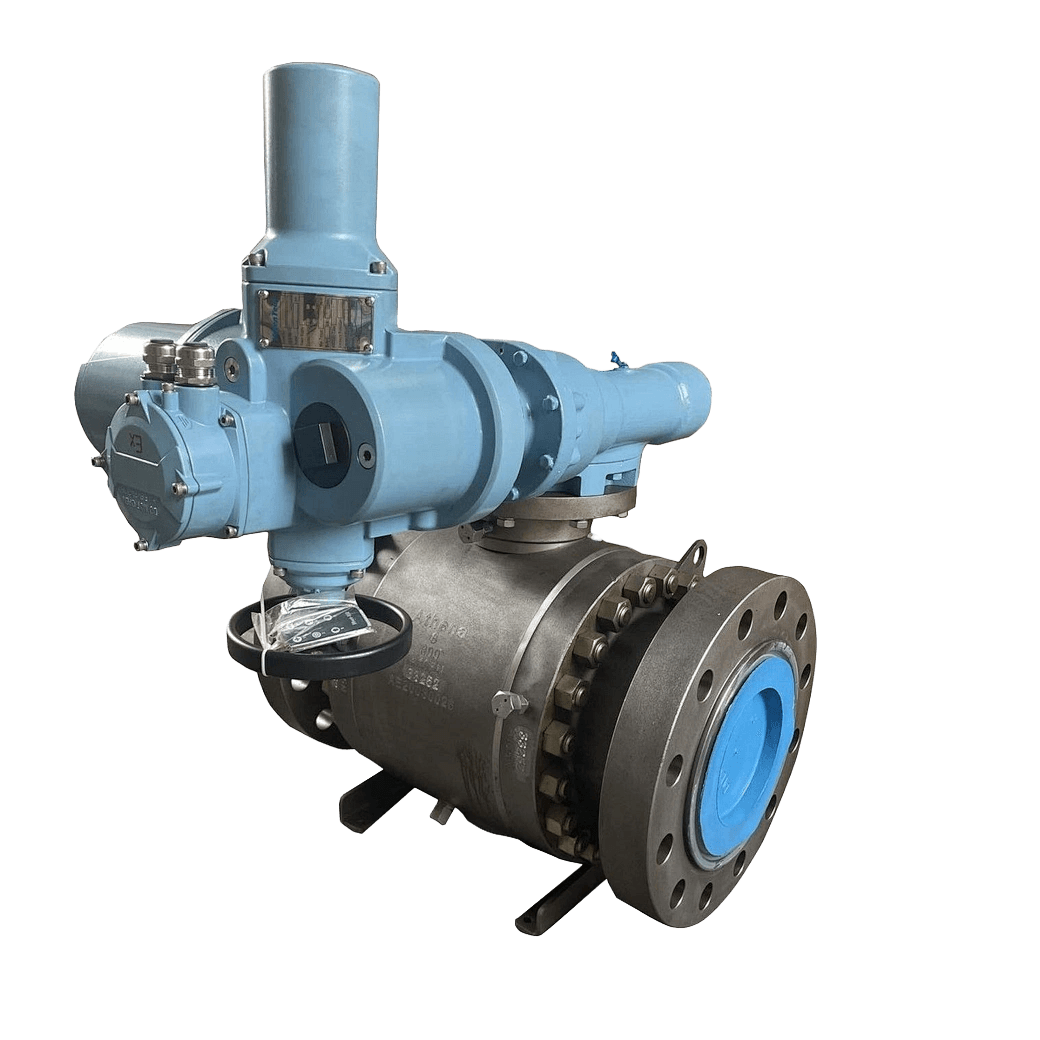

Ball Valve with Electric Actuator

VTEM Multi-Turn Electric Actuator

VTEM series actuator delivers 100–3,000 N.m torque at 18–144 rpm for reliable electric valve positioning.

IP67/IP68 Waterproof Protection

IP67 enclosure as standard; IP68 optional for submerged or severe-ingress service environments.

Wide Body Material Range

Body materials from carbon steel and stainless steel through Monel, Inconel, and Hastelloy for corrosive and high-alloy applications.

Multiple Optional Protection Ratings

Optional BT4/BT6 and CT4/CT6 protection ratings extend compatibility to hazardous classified areas.

SPECIFICATIONS

VALVE SPECIFICATIONS

4 SPECS

01Size Range

2" – 40"

02Pressure Rating

Class 150 – 2500

03End Connections

RF, RTJ, BW

04Body Material

Carbon steel, stainless steel, alloy steel, Monel, Inconel, Hastelloy

ACTUATOR SPECIFICATIONS

4 SPECS

01Model

VTEM series

02Torque Range

100 – 3,000 N.m

03Speed Range

18 – 144 rpm

04Ambient Temperature

−30°C to +70°C (−40°C optional)

PROTECTION

2 SPECS

01Standard

IP67

02Optional

IP68, BT4/BT6, CT4/CT6

Use Cases

APPLICATIONS

Engineered for demanding environments across multiple industries and operating conditions.

01Ball valves

02Butterfly valves

03Plug valves

04Gate valves

05Globe valves

06Check valves

07Regulating valves

08Petroleum

09Chemical industry

REQUEST A QUOTE

Contact Athena Control for pricing, availability, and technical support for the Ball Valve with Electric Actuator.
