FORGED STEEL Y TYPE CHECK VALVE
1/2"–2", Class 150–2500 forged steel Y-type check valve per API 602 with welded bonnet design and threaded or seal welded joint for high-pressure and temperature service.
Product Details
OVERVIEW
The Forged Steel Y Type Check Valve is a complete range of forged steel check valves designed according to the API 602 standard. Available in welded bonnet design with threaded and seal welded joint, the Y-pattern configuration is suitable for controlling flow in tubing systems across high-pressure and high-temperature applications.
Available from 1/2" to 2" in Class 150–2500 with RF, RTJ, BW, SW, and NPT end connections. Body materials include carbon steel, stainless steel, alloy steel, and specialty alloys. Manufactured from genuine raw materials with material test certificates and hydraulic test certificates. Certified to CE/PED, ISO, ATEX, SIL, FIRE SAFE, and NACE MR0175.

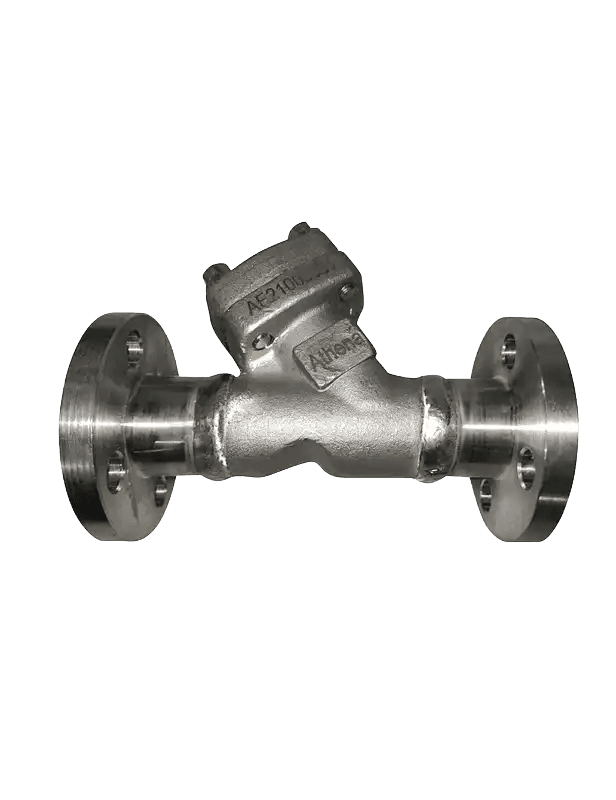

Forged Steel Y Type Check Valve
1/2"–2", Class 150–2500 forged steel Y-type check valve per API 602 with welded bonnet design and threaded or seal welded joint for high-pressure and temperature service.
Y-Pattern Design
Y-pattern configuration available in globe and check design variants for versatile installation in tubing systems.
Welded Bonnet Construction
Available in welded bonnet design with threaded and seal welded joint for enhanced integrity under high pressure.
API 602 Design
Complete range designed and manufactured in conformance with API 602 for forged steel valves.
Full Documentation
Manufactured from genuine raw materials with material test certificates and hydraulic test certificates.
SPECIFICATIONS
GENERAL
3 SPECSMATERIALS
1 SPECEND CONNECTIONS
1 SPECSTANDARDS & CERTIFICATIONS
3 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Forged Steel Y Type Check Valve.
