FORGED STEEL LIFT CHECK VALVE

1/2"–2", Class 150–2500 forged steel lift check valve per API 602 with spring-loaded disc for high-pressure and high-temperature service, available in bolted and welded bonnet designs.

Size Range1/2" – 2"

Pressure Class150 LB – 2500 LB

End ConnectionsRF / RTJ / BW / SW / FNPT

Design StandardAPI 602 / Fire Safe API 607

CertificationsCE/PED, ISO, ATEX, SIL, NACE MR0175

REQUEST A QUOTE MANUFACTURER SITE

Product Details

OVERVIEW

The Forged Steel Lift Check Valve features a sealing disc set to a vertically constrained spring. A minimum upstream pressure is required to lift the disc and allow forward flow; when pressure drops, the spring returns the disc to the sealed position, preventing backflow. Available in swing type, lift type, bolted bonnet, and welded bonnet designs.

Available from 1/2" to 2" in Class 150–2500 with RF, RTJ, BW, SW, and FNPT end connections in full bore and reduced bore variants. Body materials include carbon steel, stainless steel, alloy steel, duplex stainless steel, and specialty alloys. Designed to API 602 and Fire Safe to API 607. Certified to CE/PED, ISO, ATEX, SIL, and NACE MR0175. Supplied with material test certificates (MTC 3.1) and hydraulic test certificates; third-party inspection is available.

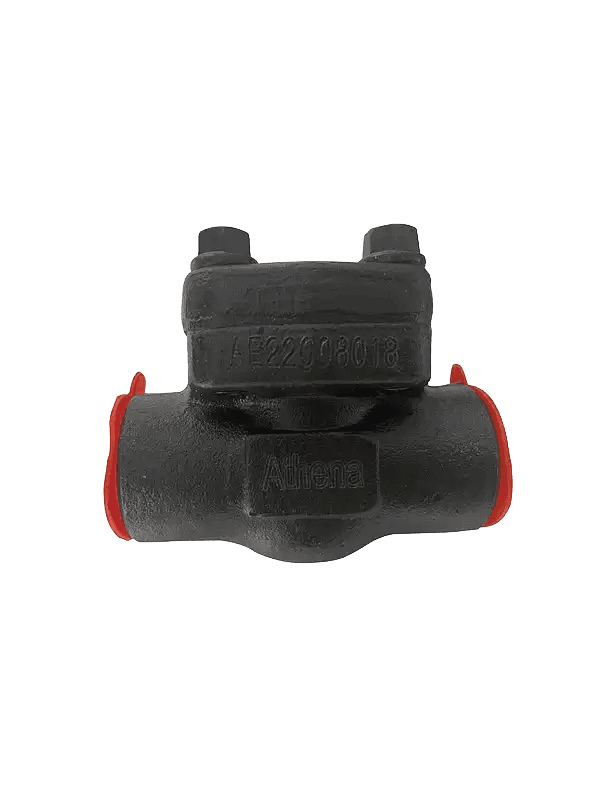

Forged Steel Lift Check Valve

1/2"–2", Class 150–2500 forged steel lift check valve per API 602 with spring-loaded disc for high-pressure and high-temperature service, available in bolted and welded bonnet designs.

Spring-Loaded Lift Mechanism

Vertically constrained spring-loaded disc requires a minimum pressure threshold to open and automatically reseats on flow reversal.

Bolted and Welded Bonnet Options

Available in bolted bonnet and welded bonnet designs to suit varying pressure and maintenance requirements.

API 602 Design

Designed and manufactured in conformance with API 602 for forged steel valves. Fire Safe to API 607.

Full Documentation

Manufactured from genuine raw materials with material test certificates (MTC 3.1) and hydraulic test certificates; third-party inspection is available.

SPECIFICATIONS

GENERAL

5 SPECS

01Size Range

1/2" – 2"

02Pressure Class

150 LB – 2500 LB

03Design Standard

API 602

04Fire Safe

API 607

05Bore

Full bore / Reduced bore

MATERIALS

1 SPEC

01Body Material

Carbon steel, Stainless steel, Duplex stainless steel, Alloy steel, Monel, Inconel, Hastelloy

END CONNECTIONS

1 SPEC

01End Connections

RF / RTJ / BW / SW / FNPT

STANDARDS & CERTIFICATIONS

2 SPECS

01Material Standard

NACE MR0175

02Certifications

CE/PED, ISO, ATEX, SIL

Use Cases

APPLICATIONS

Engineered for demanding environments across multiple industries and operating conditions.

01Oil and gas pipelines

02Refineries

03Petrochemical plants

04Power generation

05Gas and coal-fired turbines

06District heating

07Offshore platforms

08Cryogenic service

09Emergency shutdown valves

10Pulp and paper

11Mining

12Boiler steam and drain applications
