DUAL PLATE TYPE CHECK VALVE
2"–60", Class 150–2500 dual plate check valve with retainerless compact design, fast-acting spring response, and low energy loss for backflow prevention.
Product Details
OVERVIEW
The Dual Plate Type Check Valve features a unique compact design with two discs hinged like doors. The design eliminates gravity effects, requires minimal energy to open and maintain the open position, and reduces slamming and water hammer concerns through fast-acting spring response to flow reversal.
Available from 2" to 60" in Class 150–2500 with RF, LUG, RTJ, and WAFER end connections in full bore and reduced bore variants. Body materials include carbon steel, stainless steel, alloy steel, and specialty alloys including Al-bronze. Certified to CE/PED, ISO, ATEX, SIL, FIRE SAFE, and NACE MR0175. Supplied with material test certificates, hydraulic test certificates, and third-party inspection options.

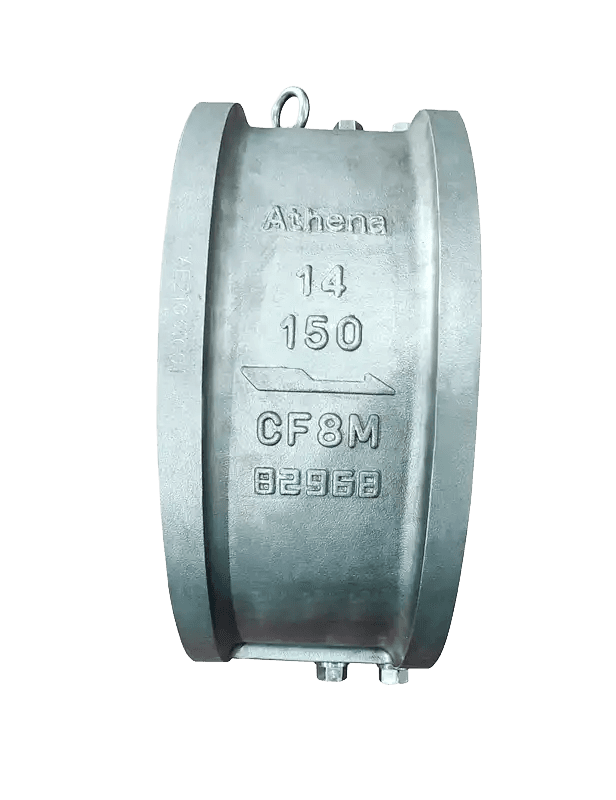

Dual Plate Type Check Valve
2"–60", Class 150–2500 dual plate check valve with retainerless compact design, fast-acting spring response, and low energy loss for backflow prevention.
Retainerless Design
Special retainerless body and quick-acting spring provide a fast-acting response to flow reversal.
Compact Two-Disc Structure
Two discs hinged like doors eliminate gravity effects and minimize weight and stress on the system.
Low Energy Loss
Very little energy is needed to open the valve and maintain the open position under flow.
Reduced Water Hammer
Fast-acting spring and compact design reduce slamming and water hammer concerns on flow reversal.
SPECIFICATIONS
GENERAL
3 SPECSMATERIALS
1 SPECEND CONNECTIONS
1 SPECSTANDARDS & CERTIFICATIONS
3 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Dual Plate Type Check Valve.
