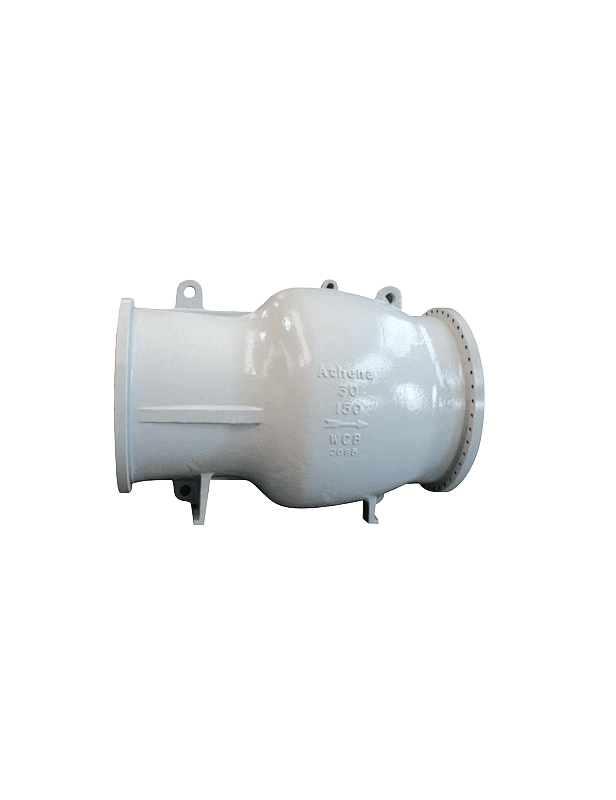

AXIAL FLOW CHECK VALVE
2"–36", Class 150–1500 axial flow check valve with spring-assisted closure, low pressure drop, and anti-cavitation design for high-flow pipeline service.
Product Details
OVERVIEW
The Axial Flow Check Valve employs spring force and back-pressure to restore the disc to the sealing position on flow reversal. The axial flow structure and accurate flowing passage enable little pressure loss and prevent cavitation, while the disc carrier and pin design prevents sticking during operation.
Available from 2" to 36" in Class 150–1500 with RF, BW, and RTJ end connections. Body materials include carbon steel, stainless steel, alloy steel, and specialty alloys. Engineered and manufactured in conformance with API 6D and ASME B16.34. Supplied with material test certificates (MTC 3.1) and hydraulic test certificates; third-party inspection is available. Certified to CE/PED, ISO, ATEX, SIL, and NACE MR0175.
Axial Flow Check Valve
2"–36", Class 150–1500 axial flow check valve with spring-assisted closure, low pressure drop, and anti-cavitation design for high-flow pipeline service.
Low Pressure Drop
Axial flow structure and accurate flowing passage enable little pressure loss and stable flow characteristics.
Anti-Cavitation Design
Engineered to prevent cavitation erosion in high-flow pipeline applications.
Non-Sticking Mechanism
Disc carrier and pin design prevents disc sticking during operation.
Low-Noise Operation
Quiet operation suited to high-flow pipeline applications requiring backflow prevention.
Spring-Assisted Closure
Spring force and back-pressure work together to restore the disc to sealing position on flow reversal.
SPECIFICATIONS
GENERAL
3 SPECSMATERIALS
1 SPECEND CONNECTIONS
1 SPECSTANDARDS & CERTIFICATIONS
2 SPECSUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Axial Flow Check Valve.
