JACKETED FLOATING BALL VALVE
Full-bore floating ball valve with a welded heating jacket covering the entire body, designed to maintain elevated temperatures for viscous or solidifying media.
Product Details
OVERVIEW
Athena's jacketed floating ball valves are manufactured from cast carbon steel and stainless steel, with optional special materials. The valve features a fabricated two-piece jacket welded to the body, covering it from one flange end to the other to provide uniform heating of the process media.
The fire-safe design is qualified to API-607. Stem sealing is adjustable and maintenance-free, with an additional O-ring for redundancy. The valve can be operated manually or with electric or pneumatic actuators.

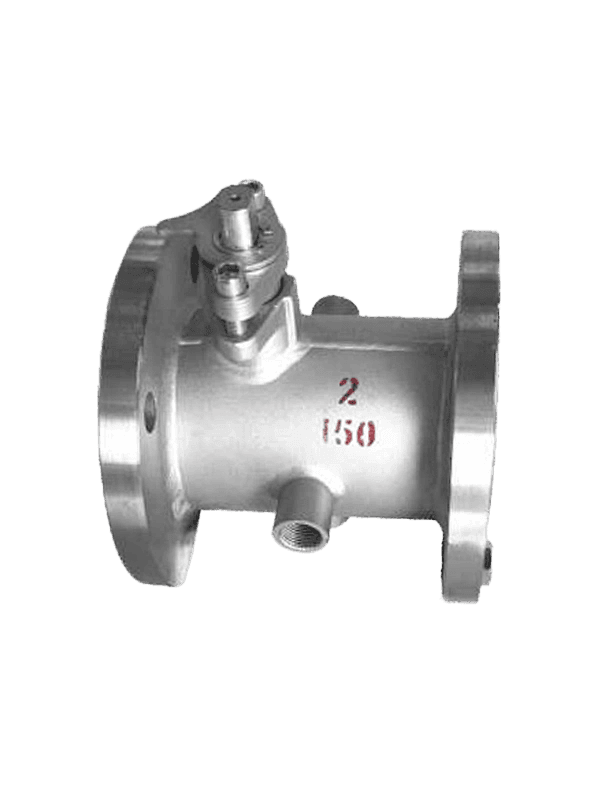

Jacketed Floating Ball Valve
Full-bore floating ball valve with a welded heating jacket covering the entire body, designed to maintain elevated temperatures for viscous or solidifying media.
Full-Body Heating Jacket
Two-piece fabricated jacket welded to the valve body covers the body from one flange end to the other, ensuring uniform temperature maintenance of the media.
Double Sealing of Body Insert
One-piece body design with double sealing of body insert for enhanced leak prevention.
API 607 Fire Safe Design
Cavity filler available; valve is qualified to API-607 fire testing requirements.
Adjustable Stem Sealing
Maintenance-free stem sealing with additional O-ring provides redundant sealing reliability.
SPECIFICATIONS
GENERAL
3 SPECSMATERIALS
1 SPECJACKET & HEATING
2 SPECSEND CONNECTIONS & ACTUATION
2 SPECSSTANDARDS & CERTIFICATIONS
1 SPECUse Cases
APPLICATIONS
Engineered for demanding environments across multiple industries and operating conditions.
REQUEST A QUOTE
Contact Athena Control for pricing, availability, and technical support for the Jacketed Floating Ball Valve.
